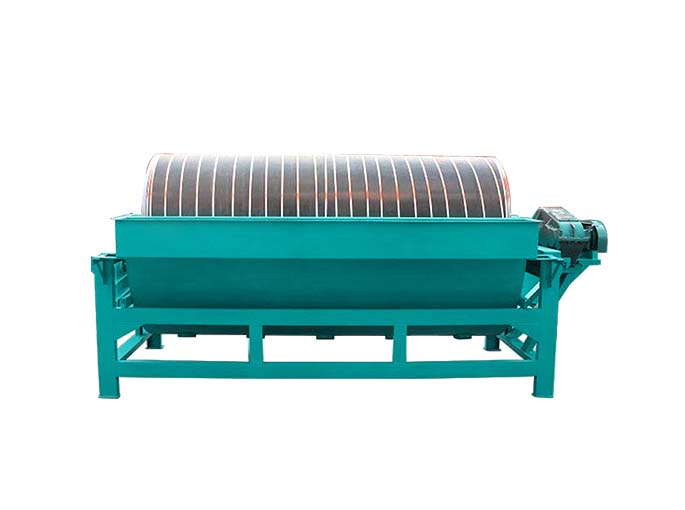

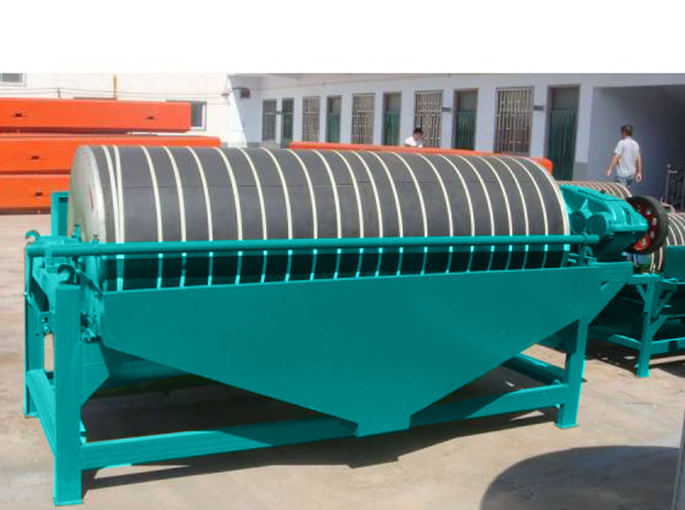

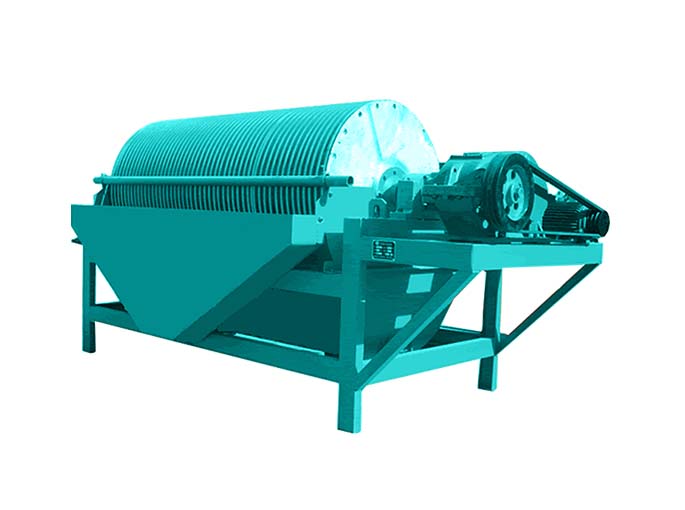

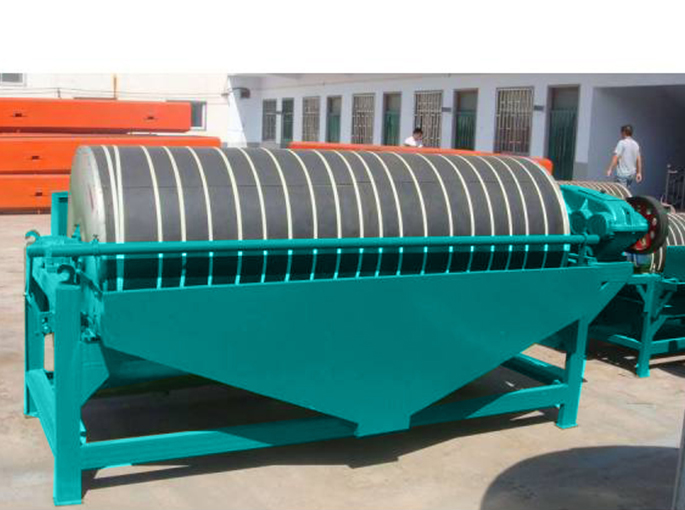

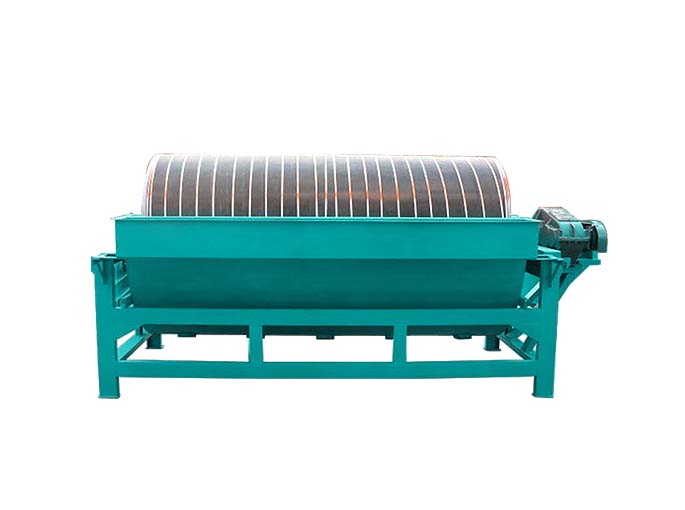

Magnetic separator is suitable for materials with magnetic difference, which is widely used for resource recovery, timber industry, mining industry, ceramics industry, chemical industry, food and other workshops. Magnetic separator is suitable for wet separating of materials with below 3mm particle size, such as magnetite, pyrrhotite, roasted ore, ilmenite and other materials. It is also used for iron removing operation of coal, non-metallic minerals, building materials and other materials, which is one of the most extensive and high versatility devices.
Answer customer questions professionally
Combined with the actual configuration plan
Regular return visit and testing
1. Good separation effect:This machine adopts dynamic magnetic system. The raw ores slide, move and roll at the surface of the drum, and there is no ores sticking to the drum, which helps separate different ores. The grade can be improved 1-4 times in the first separation process, and the grade can reach 60% in fine separation process.
2. Large capacity:By using wrapped type open magnetic system, the materials do not stick together and the blocking phenomenon can be avoided, which leads to large capacity. The feeding capacity of an individual magnetic separator is at least 50 tons. And the machines can connected together to be put into use so as to improve the capacity.
3. Wide application:This type magnetic separator can be divided into 4 categories, more than 20 types and models, which can meet the needs of iron ore, river sand, tailings, slags, steel ash, sulfate slag, grinding materials, refractory, plating, rubber, food industries and etc. Some of them are with multi-purposes.
Magnetic separator can be divided into wet magnetic separator and dry magnetic separator. Wet magnetic separator is the commonly used separator in ore dressing plants, which is applicable to separate strong magnetic minerals.
Magnetic separator can separate magnetite, limonite, hematite, manganese siderite ore, ilmenite, wolframite, manganese ore, metallurgical manganese ore, manganese oxide, iron ore, kaolin, rare earth mining and so on. Magnetic separation process is realized by the magnetic and mechanical force on the particles in the magnetic field. Different magnetic mineral grains will move along a different trajectory, thus sorting into two or more separate ore dressing products.
| Model | Cylinder Size (mm) | Cylinder Speed(r/min) | Capacity (t/h) | Capacity (m³/h) | Power (kw) | Feed size(mm) | Magnetic Strength(TM) | Weight （t) |
| CTB 0612 | φ600×1200 | 40 | 10--20 | 36 | 1.5 | 2--0 | 80-400 | 1223 |
| CTB 0618 | φ600×1800 | 35 | 18--35 | 48 | 2.2 | 2--0 | 80-400 | 1655 |
| CTB 7512 | φ750×1200 | 35 | 12--30 | 52 | 2.1 | 2--0 | 120-400 | 1682 |
| CTB 7518 | φ750×1800 | 27 | 20--45 | 72 | 3 | 2--0 | 80-400 | 1992 |
| CTB 0918 | φ900×1200 | 27 | 28--60 | 90 | 3 | 3--0 | 130-400 | 3162 |
| CTB 0924 | φ900×2400 | 22 | 38--80 | 110 | 4 | 3--0 | 130-400 | 3887 |
| CTB 1018 | φ1000×1800 | 22 | 36--72 | 120 | 5.5 | 3--0 | 130-400 | 3801 |
| CTB 1024 | φ1000×2400 | 22 | 52-100 | 160 | 5.5 | 3--0 | 130-400 | 4319 |
| CTB 1030 | φ1000×3000 | 19 | 64-125 | 200 | 5.5 | 3--0 | 130-400 | 4976 |
| CTB 1218 | φ1200×1800 | 19 | 55--95 | 140 | 5.5 | 3--0 | 150-400 | 5263 |
| CTB 1224 | φ1200×2400 | 19 | 65-110 | 192 | 7.5 | 3--0 | 150-400 | 5927 |
| CTB 1230 | φ1200×3000 | 19 | 85-120 | 240 | 7.5 | 3--0 | 150-400 | 6325 |
| CTB 1530 | φ1500×3000 | 16 | 95-160 | 270 | 11 | 3--0 | 150-400 | 8665 |
| CTB 1540 | φ1500×4000 | 16 | 120-190 | 350 | 11 | 3--0 | 150-400 | 9871 |
