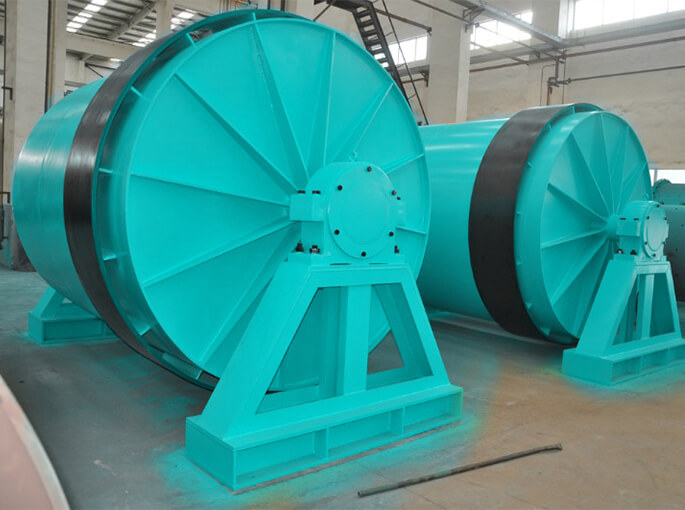

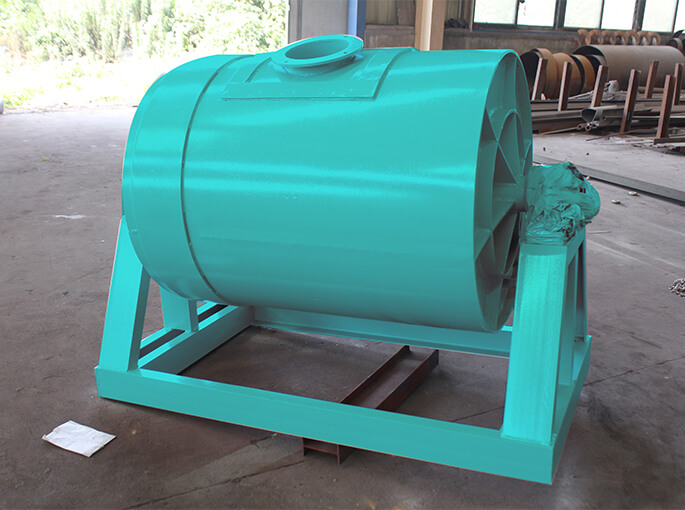

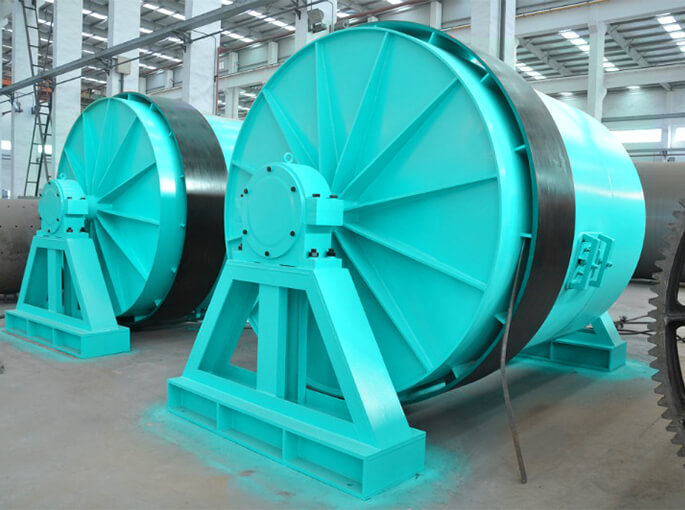

Ceramic ball mill

  • weight: 3-18.6T
  • Production capacity : 0.2-10 t/h
  • Power:5.5-90kw

⌈ Product Features ⌋ :

Energy saving, novel structure, convenient operation, safe use, stable and reliable performance, safety and environmental protection.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Working principle

The motor drives the cylinder to turn through the decelerating device, and the crushed ore and steel ball in the cylinder body are brought to a certain height by the friction force and centrifugal force when the cylinder is turning, and the ore is gradually crushed under the impact and grinding. The crushed ore is discharged out of the cylinder through the discharge section. After the discharged minerals are graded into qualified products in the spiral classifier, the coarse sand is returned to the ball mill through the combined feeder to continue grinding. The feeder feeds continuously and evenly, the ore enters the ball mill continuously and evenly through the combined feeder, and the ground material is continuously discharged from the ceramic intermittent ball mill. Ceramic intermittent ball mill is a grinding equipment that can work continuously 24 hours a day.

Project Introduction


Ceramic intermittent ball mill is a new type of energy-saving ball mill equipment developed by Baling machine experts combined with the latest domestic ball mill technology. Ceramic intermittent ball mill is mainly used for material mixing, grinding, product fineness uniformity and power saving. It can be dry ground or wet ground. The machine can use different liner types according to production needs to meet different needs. The fineness of grinding operation depends on the grinding time to control itself.

The ball mill bearings are lubricated with lean oil, which is conducive to the cleaning of the internal dirt of the bearings during the operation of the equipment and the reduction of the wear of the bearings. The ball mill equipment reduces the replacement degree of the wearing parts of the equipment to the greatest extent. The ball mill lining plate and the steel ball are made of high chromium steel, which has a long wear-resistant service cycle, which brings great benefits to the maintenance of the equipment and the operation of the production in the later period of the customers.

Product Advantage

Characteristics of Ceramic ball mill

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

This product has the characteristics of less investment, energy saving and power saving compared with similar products, novel structure, easy operation, safe use, stable and reliable performance, etc., suitable for ordinary and special materials mixing and grinding operations. The user can choose the appropriate model and liner and medium type according to the specific gravity and hardness of the material, and according to the yield and other factors, which can be used together with the beneficiation equipment.

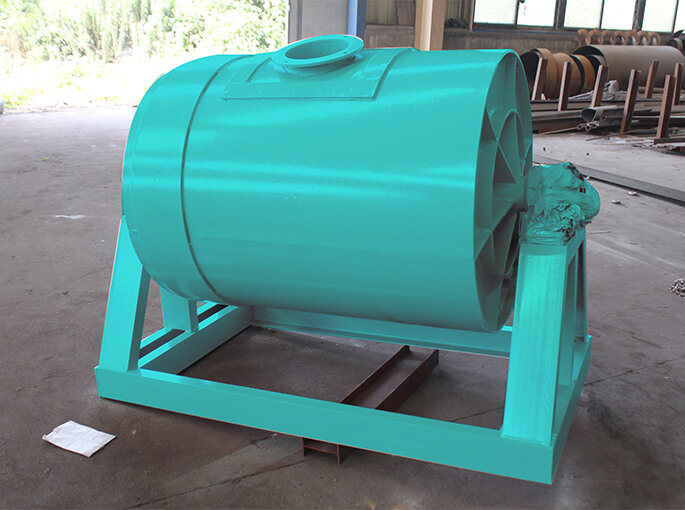

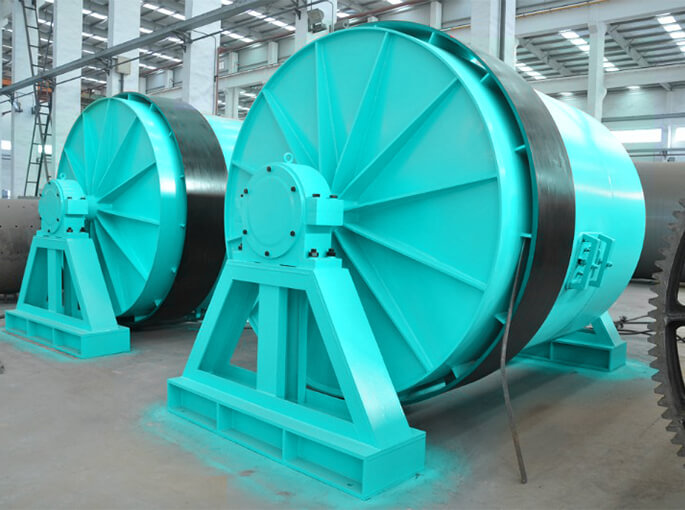

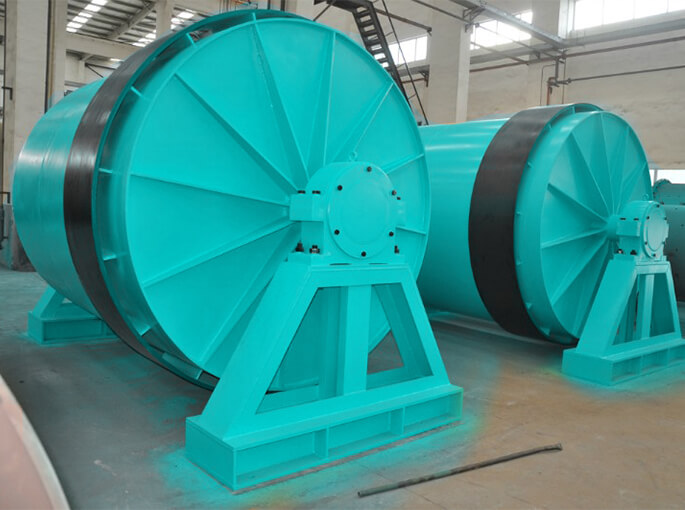

Working Site

Technical Parameters

ModelCylinder Size  (mm)Cylinder Speed(r/min)Effective volume(m³)Power (kw)Billiards Volume(t)Weight    (t)
TCQ 0911φ910×1120360.53110.53.5
TCQ 1214φ1200×1400321.2318.51.24.8
TCQ 1518φ1500×1800282.61301.86.5
TCQ 1821φ1800×2100264.54373.28.8
TCQ 2121φ2100×2100226.28454.610.2
TCQ 2224φ2200×2400207.96556.213.6
TCQ 2424φ2400×2400189.55557.816.9
TCQ 2529φ2500×29001612.66751120.4
TCQ 2837φ2800×370014.520.69016.824.6
TCQ 3037φ3000×37001423.7711020.328.4
