Belt conveyor

  • Capacity:25-980m³/h
  • Diameter :500-1000mm
  • Power:1.5-22kw

⌈ Characteristics⌋ :

The belt conveyor (belt conveyor) produced by the company has the advantages of large throughput, simple structure, convenient maintenance, standardized components, etc.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Working principle

The belt conveyor is mainly composed of two end-point rollers and a closed conveyor belt tightly covered on them. The drum that drives the conveyor belt to rotate is called the driving drum (transmission drum); Another drum that only changes the direction of the conveyor belt is called the reversing drum. The driving drum is driven by the motor through the reducer, and the conveyor belt is dragged by the friction between the driving drum and the conveyor belt. The driving roller is generally installed at the discharge end to increase traction and facilitate dragging. The material is fed by the feeding end, falls on the rotating conveyor belt, and is driven by the friction of the conveyor belt to the unloading end.

Project Introduction


Belt conveying equipment is widely used in household appliances, electronics, electrical appliances, machinery, tobacco, injection molding, post and telecommunications, printing, food and other industries, objects assembly, testing, debugging, packaging and transportation. Line conveying can be selected according to the process requirements: ordinary continuous operation, beat operation, variable speed operation and other control modes; Line body selected according to local conditions: straight line, curve, slope and other line body forms. Conveying equipment includes: belt conveyor, also called belt conveyor or belt conveyor, is an indispensable economic logistics conveying equipment for the composition of a rhythmic flow line.

According to its conveying capacity can be divided into heavy belt machine such as mining belt conveyor, light belt machine such as used in electronic plastics, food light industry, chemical and pharmaceutical industries. The belt conveyor has strong conveying capacity, long conveying distance, simple structure and easy maintenance, and can easily implement programmed control and automatic operation. The continuous or intermittent movement of the conveyor belt is used to transport items below 100KG or powdery and granular items, and its operation is high-speed, stable, low noise, and can be transmitted up and down the slope.

Product Advantage

Characteristics of Belt conveyor

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

The belt conveyor (belt conveyor) produced by the company has the advantages of large throughput, simple structure, convenient maintenance, standardized components, etc. The belt conveyor is widely used in mining, metallurgy, coal and other departments, used to transport loose materials or pieces of goods, according to the transportation process requirements, can be a single conveyor. It can also be composed of multiple sets or with other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different layout types of lines. The belt conveyor can be used in the range of ambient temperature -20 ° C to +40 ° C, and the temperature of conveying materials is below 50 ° C.

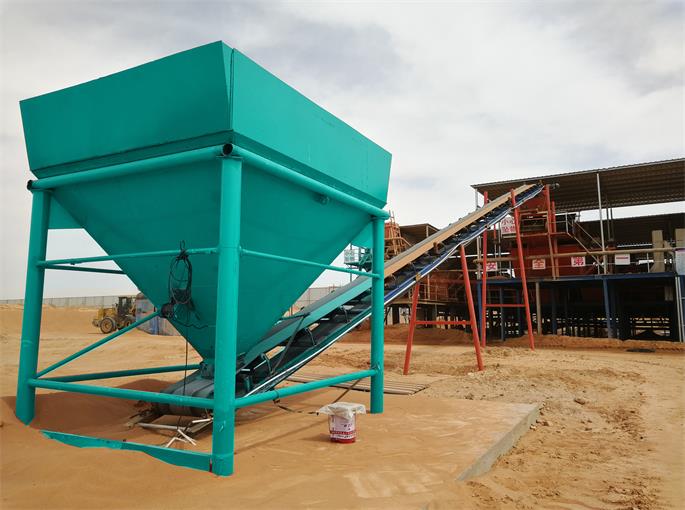

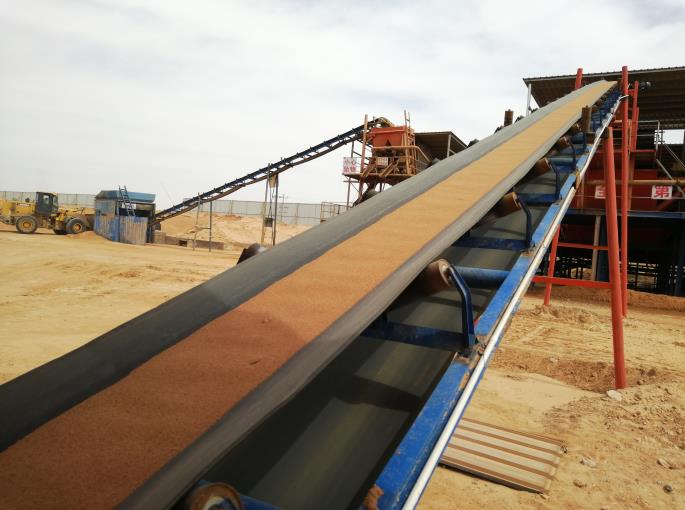

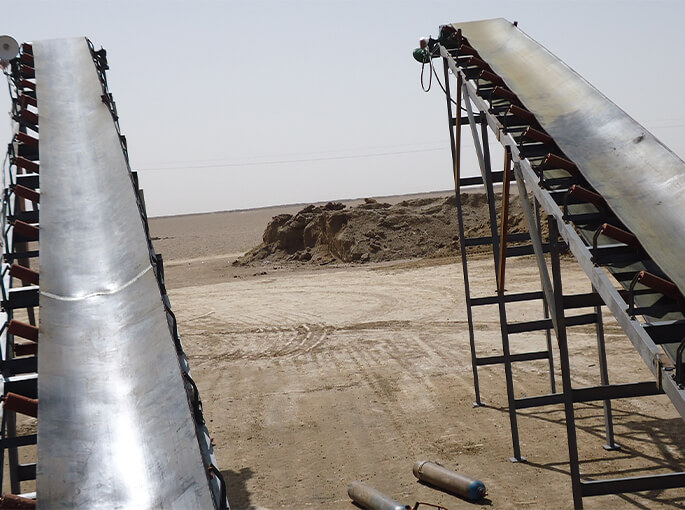

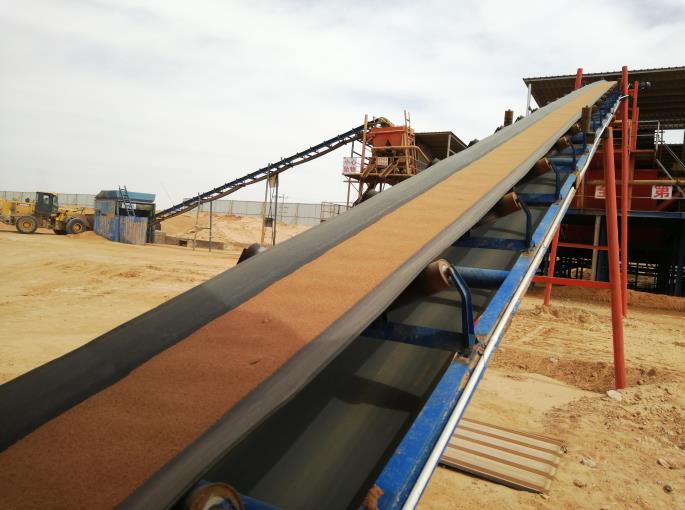

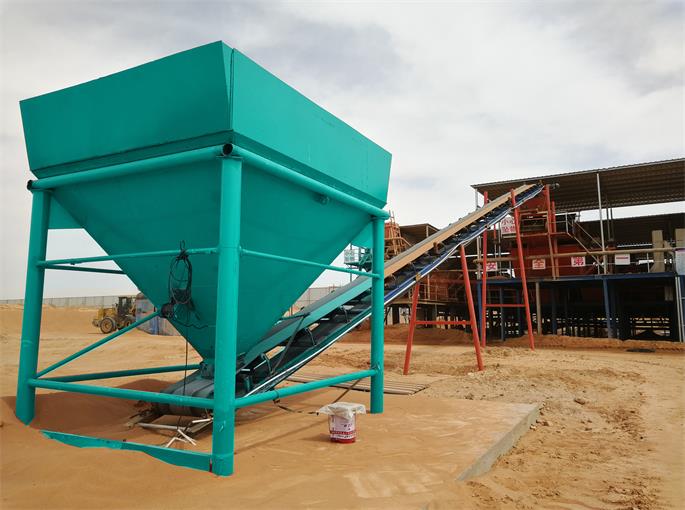

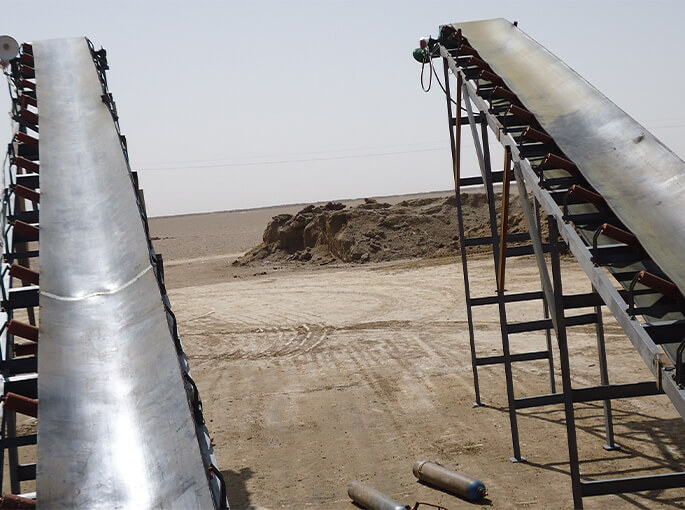

Working Site

Technical Parameters

ModelBelt(mm) SpecificationsCapacity  (m³/h)Speed   (m/s)Dip(°) AngleDrum(mm) DiameterPower                                               (kw)
