product

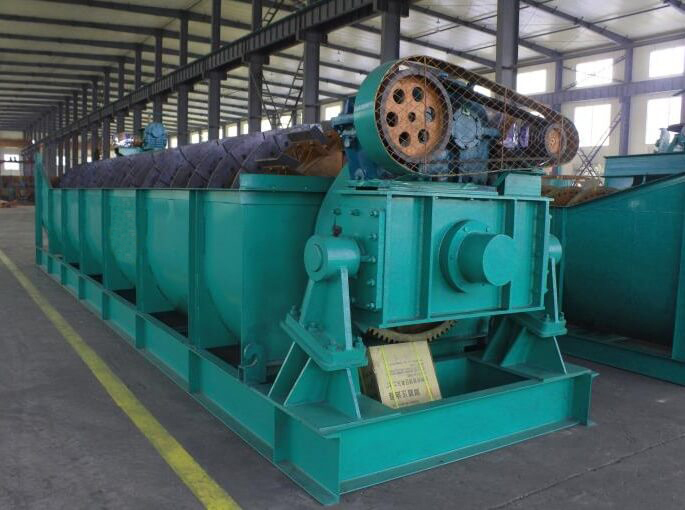

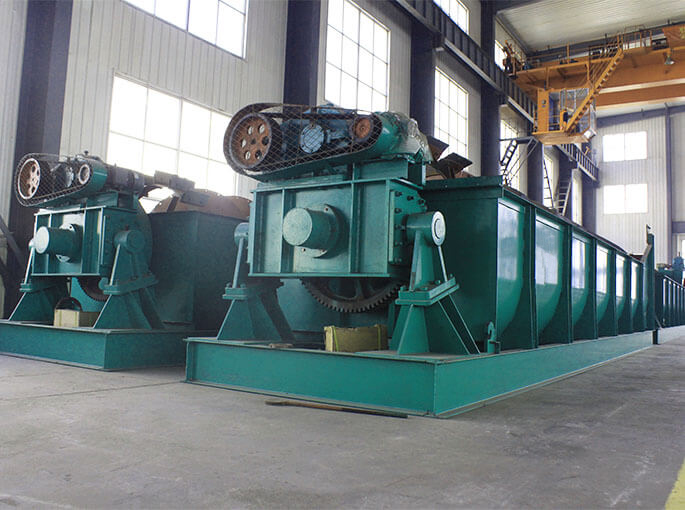

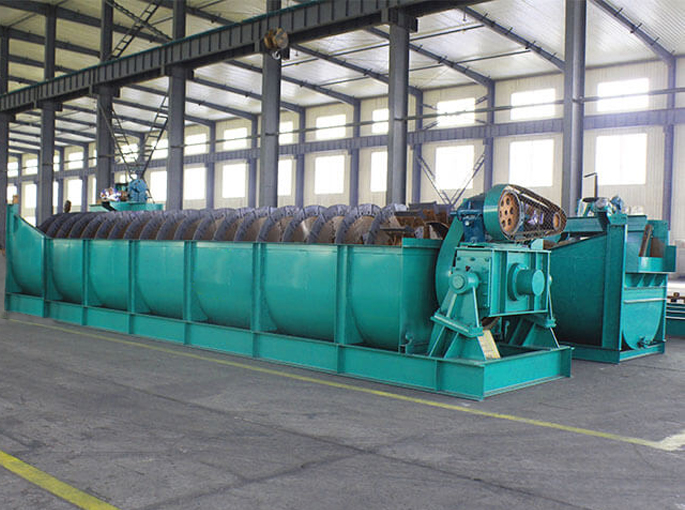

Screw sand washer

  • Spiral diameter:300-3000mm
  • Spiral rotation speed:3.2-30r/min
  • Trough length:≤3000-14130mm

Introduction

This machine makes use of buoyancy of water to separate sand from dust and impurity It achieves purifying, lifting and conveying of the minerals.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Advantages

1.Sand and mountain floor is not easy to flow, final product can be up to international standard.

2.Screw sand washer has no wear parts except screening net.

3.Long lifespan and it is not easy to break.

4.Reasonable structure, easy maintenance, big capacity, low consumption, high clearance. New sealing structure, blocked oil transmission device and adjustable overflow plate can make sure that the product has high efficiency, is durable and good dehydration.

5.Screw sand washer is used for washing, grading and hydrating in the building plant, sand stone plant, glass plant and hydropower station.

Project Introduction

Introduction

This machine makes use of buoyancy of water to separate sand from dust and impurity.

It achieves purifying, lifting and conveying of the minerals through the stirring of screw slice. During lifting, the minerals are also stirred so that the coarse sands and fine sands are evenly mixed.

This machine makes use of buoyancy of water to separate sand from dust and impurity It achieves purifying, lifting and conveying of the minerals.

Product Advantage

Characteristics of Screw sand washer

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

Working Site

Technical Parameters

Specification modelSpiral diameter(mm)Capacity(t/h)Motor Power(kw)Weight(t)
LSX-508508105.52800
LSX-610610207.53250
LSX-750750507.53820
LSX-91591560114550
LSX-1200120095156900
LSX-1500150013018.58800
