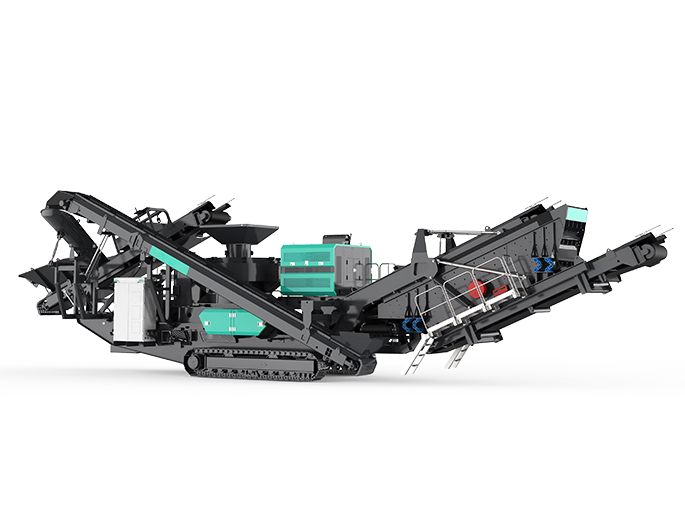

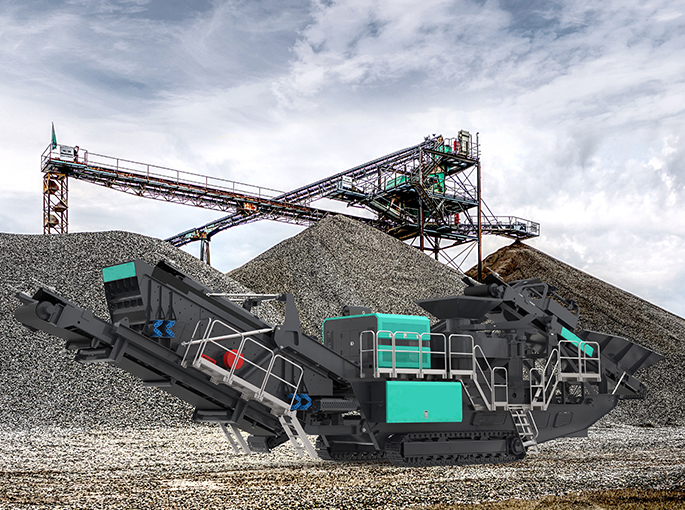

Mobile sand making station

  • Crusher weight: 38t
  • Total power : 336kw
  • Hopper volume: 5m³



It is used for crushing, shaping and sand making of soft, medium hard and extremely hard materials. It is generally used behind the cone crushing station or screening, that is, to break the finer materials after secondary crushing into finer to sand specifications.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Working Principle

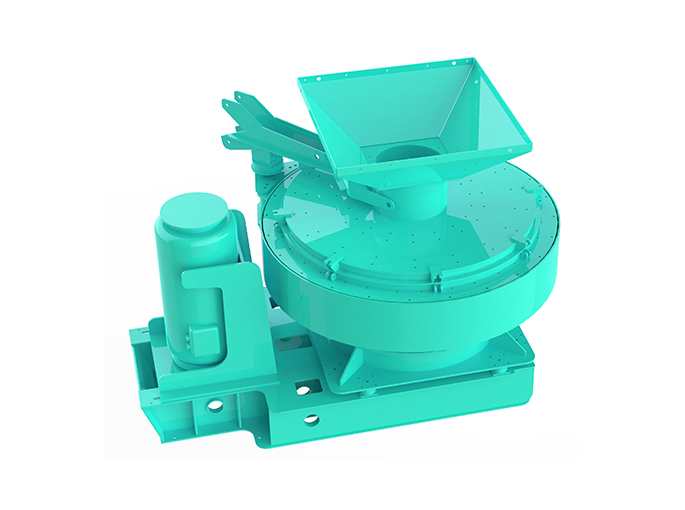

It adopts the principle of vertical shaft impact crushing. There are two feeding methods: “complete center feeding” and “center feeding with waterfall feeding”. Under normal circumstances, the full center feed is mainly “rock on iron” and is generally used for sand making. The center feed with waterfall feed is a combination of “stone on iron” and “stone on stone” and is generally used for shaping. The working principle of complete center feeding “stone striking iron”: The material enters the central rotor of the crusher through the feeding hopper. The high-speed rotating rotor ejects the material. The ejected material hits the impact guard and rebounds. When it falls, it hits the center rotor. The ejected materials impact and are broken by multiple collisions and frictions in the crushing cavity. The crushed materials leave the crushing cavity under the action of gravity and enter the discharge hopper of the lower casing for discharge.

Product introduction


It is widely used in the crushing of various ores, cement, refractory materials, bauxite clinker, emery, glass raw materials, machine-made construction sand, stone and various metallurgical slags and abrasion-resistant materials. In the field of engineering, it is an ideal production equipment for machine-made sand, cushion material, asphalt concrete and cement concrete aggregate. In the mining field, it is widely used in the front-end process of grinding. It can produce a large amount of fine ore and reduce the high-cost grinding load.

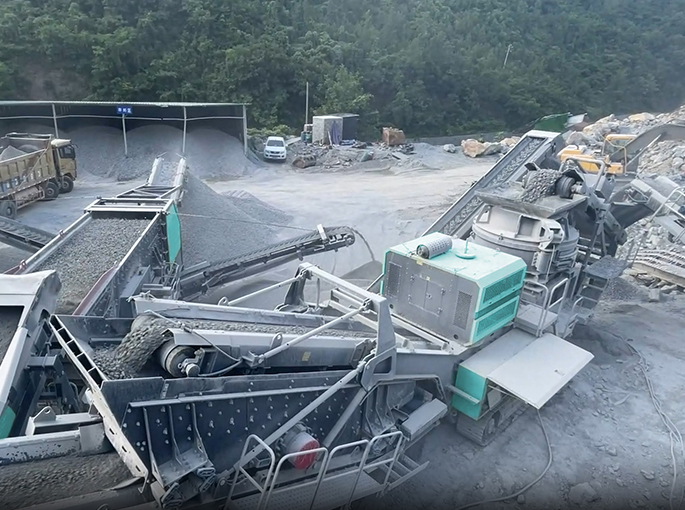

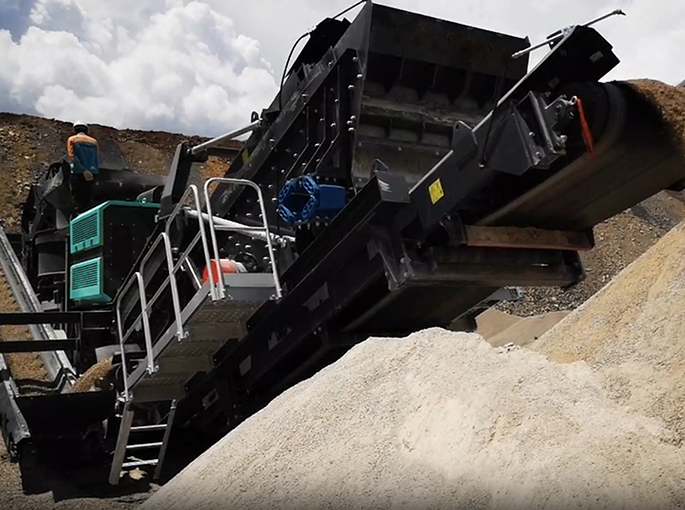

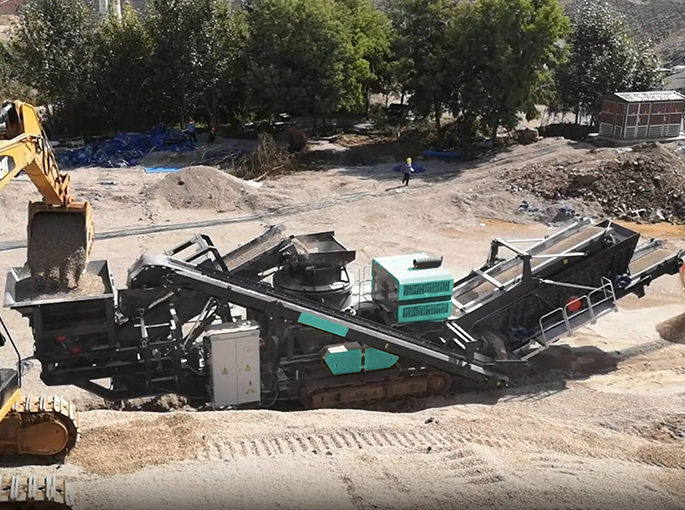

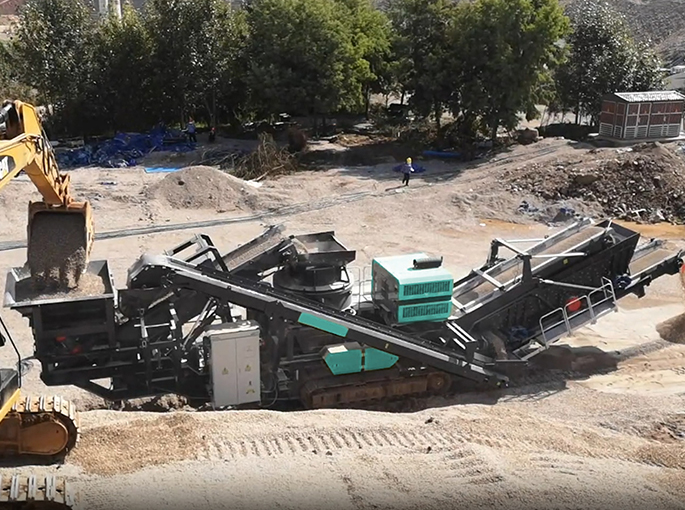

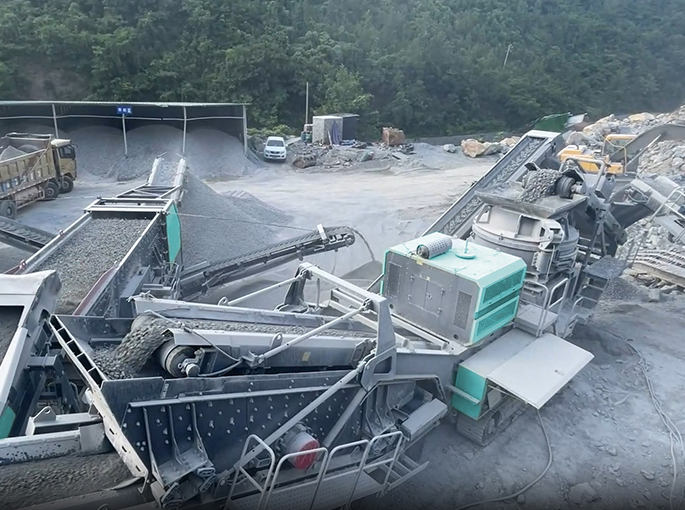

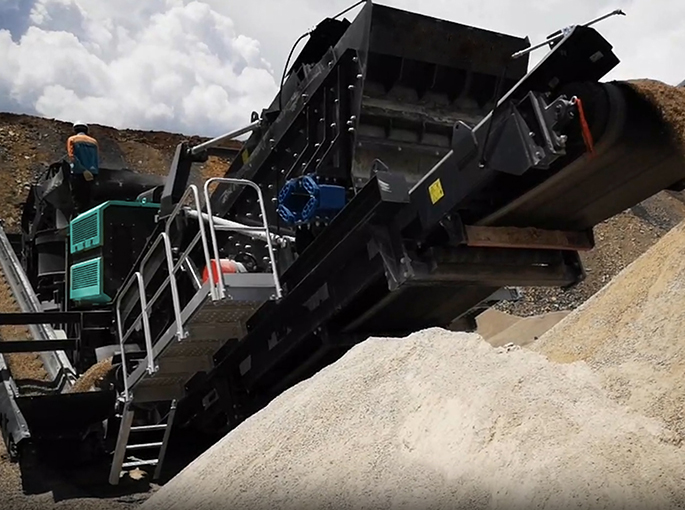

Working Site

Technical Parameters

Mobile sand making stationmodelAK0818VS
PowertrainDrive formDiesel engine/mains electricity
total powerCUMMINS 336Kw
Total weight and dimensionsgross weight35000kg
CrusherCrusher modelHVI0818
Maximum feed size45
maximum output90-150
Motor Power2X75Kw
Main belt and feederHopper volume5m³
Main belt size1000x10000
ConfigurationStandard configurationManual control, wireless remote control, automatic feeding
Optional equipmentIron remover, dust-proof spray system
