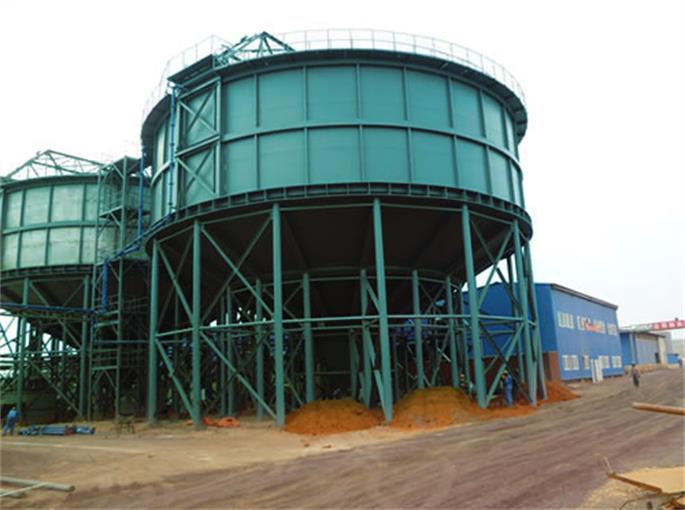

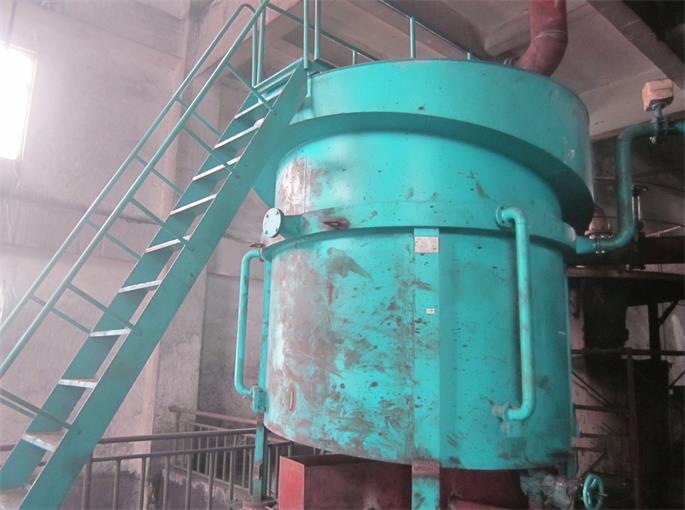

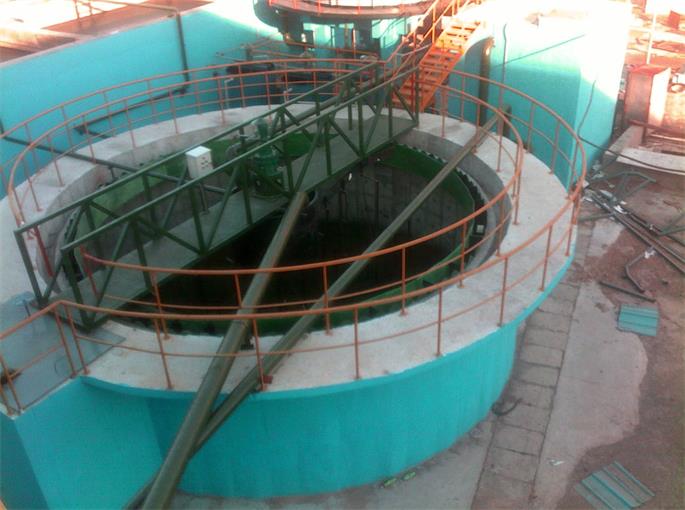

Pulp thickener is widely used for dehydration of the fine ore and gangue in beneficiation process in metallurgy, chemical industry, coal, non-metal beneficiation, and environmental-protection sectors and etc. It is a new-type dehydration equipment combined with the characteristics of pulp filter instead of a simple precipitation equipment.
Answer customer questions professionally
Combined with the actual configuration plan
Regular return visit and testing
Increasing the size of solid particle in pulp and subsidence area of concentrator can improve the working capacity of high efficiency concentrator. Adding flocculan to cohere fine materials together can increase the size of solid particles. Installing a hang plate in a common concentrator can increase its subsidence area. After that, decrease the subsidence distance between particles and improve its efficiency. In the same processing capacity, the diameter of high efficiency concentrator is as two thirds or one seconds times long as the common concentrator’s. The floor space that high efficiency concentrator occupies is as one ninths or one fourths times big as the common one’s. But the processing capacity can be improved several or dozes of times.
Thickener is suitable for dewatering treatment of concentrate and tailings on ore dressing plants, which can increase the 20-30% slurry to about 40-70%.
Thickener is widely used in metallurgy, chemical industry, coal, non-metallic mineral processing, environmental protection and other industries. It is not the simple settlement equipment, but a new type of dewatering equipment which has mud layer filtration characteristics.
1.Add flocculant settlement increased the size of solid particles, thus accelerating the velocity.
2. Shorten the installation tilt plate mineral particles from the settlement to increase the settlement area.
3. Play a layer of thick mud deposition flocculation, filtration, compression and to handle the volume.
4. Equipped with a complete-controlled facilities.
| Model | Inside(mm) Diameter | Internal height(mm) | Bottom Area(㎡) | Rake(r/min) speed | Rake(mm) height | Motor model |
| GX-3.6 | 3600 | 1700 | 10.2 | 1.1 | 200 | Y100L-6 |
| GX-5.18 | 5182 | 2134 | 21 | 0.4 | 300 | Y132S-6 |
| GX-6 | 6000 | 2500 | 28.3 | 0.8 | 300 | Y132M1-6 |
| GX-7.5 | 7500 | 2800 | 44.1 | 0.427 | 300 | Y132M2-6 |
| GX-9 | 9000 | 2800 | 63.6 | 0.427 | 300 | Y132M2-6 |
| GX-12 | 12000 | 3600 | 110 | 0.35 | 300 | Y132M-4 |
| GX-15 | 15000 | 4000 | 177 | 0.15 | 300 | YCT200-4B |
| GX-18 | 18000 | 4400 | 254 | 0.13 | 400 | YCT200-4B |
| GX-20 | 20000 | 4400 | 314 | 0.13 | 400 | YCT200-4B |
