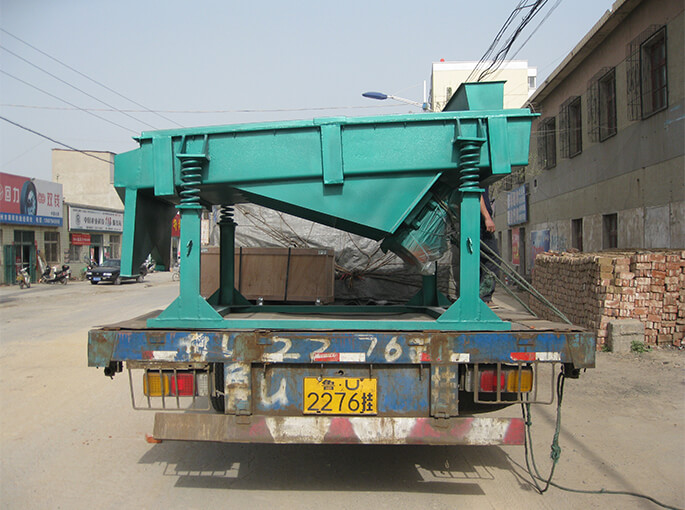

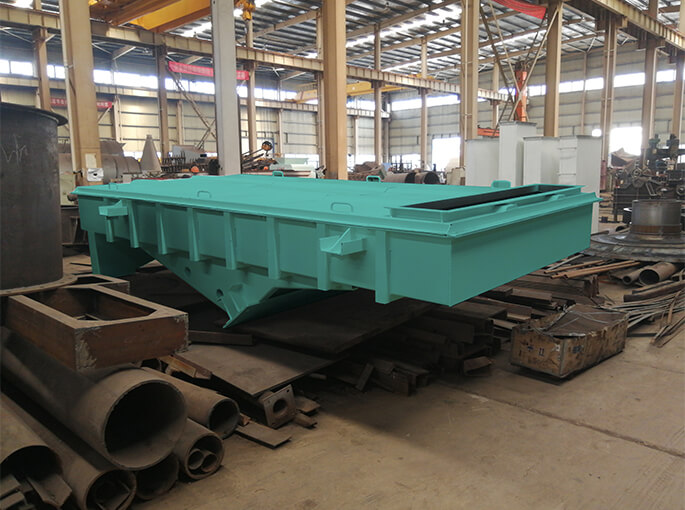

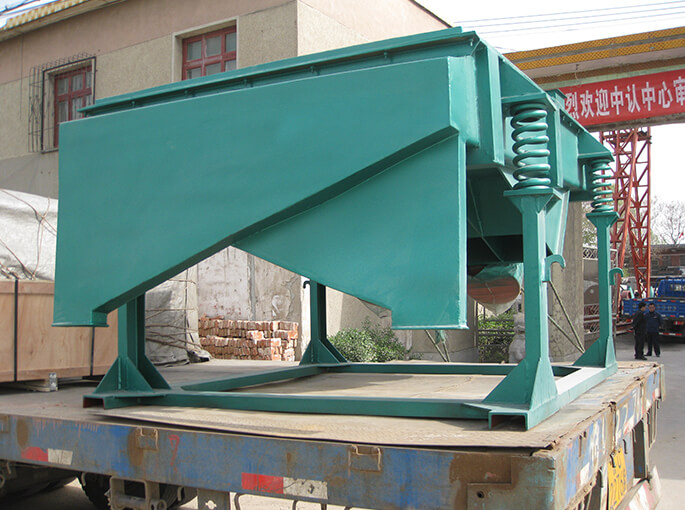

Linear vibrating screen

  • Feeding Size 0.074-15mm
  • Inclination 0-7 (°)
  • Amplitude:4-10mm

Product Features

High amplitude, high yield, low noise, low energy consumption, high safety, economical and practical, and convenient cleaning.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Product Features

High amplitude, high yield, low noise, low energy consumption, high safety, economical and practical, and convenient cleaning.



Project Introduction

Introduction

The linear vibrating screen uses a vibrating motor as the vibration source to lift the material on the screen and move it forward in a straight line. The material evenly enters the feed inlet of the screening machine from the feeder, and through multiple layers of screen, several specifications of the above and below the screen are produced, which are discharged from their respective outlets. With low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust overflow, automatic discharge, more suitable for assembly line operations.

Product Advantage

Characteristics of Linear vibrating screen

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

1.Stable and reliable, with low consumption, low noise, long service life, stable vibration mode, and high screening efficiency.

2.The design of the sieve machine is exquisite and easy to assemble, allowing one person to operate the sieve machine.

3.It has a large screening area and high efficiency processing capacity.

4.The unique screen structure design allows for easy and quick replacement of screens (only 3 to 5 minutes), and in addition, this design allows the use of various screens (nylon, special dragon, PP mesh, etc.).

5.The parent network fully supports the fine mesh, so the fine mesh can have a longer lifespan, reduce the consumption of fine mesh materials, prolong the production process, and reduce many costs.

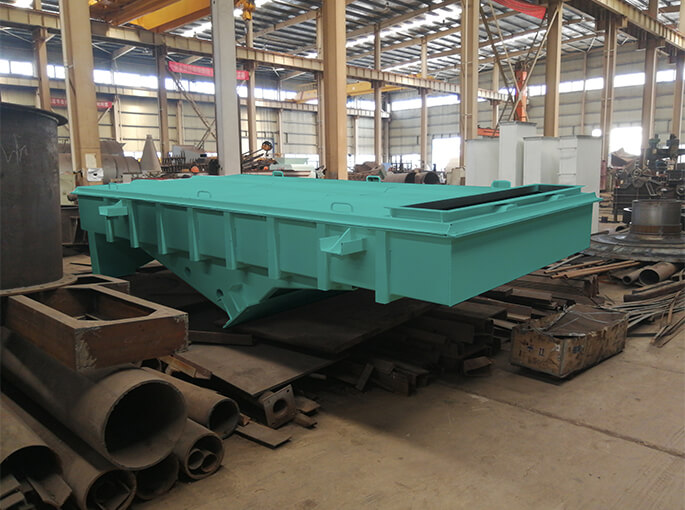

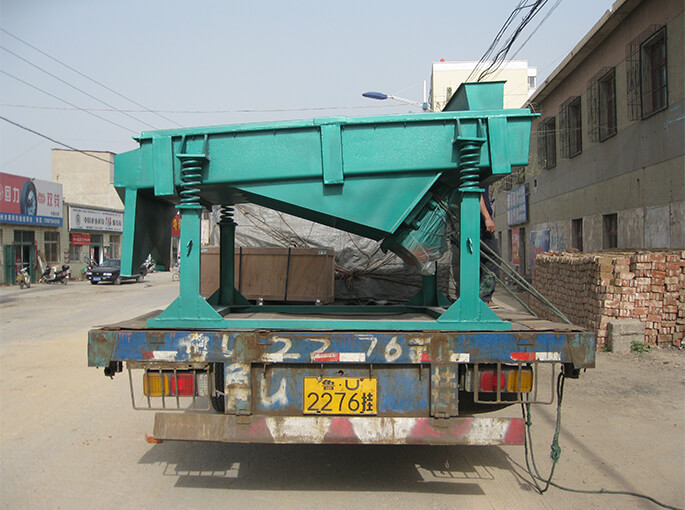

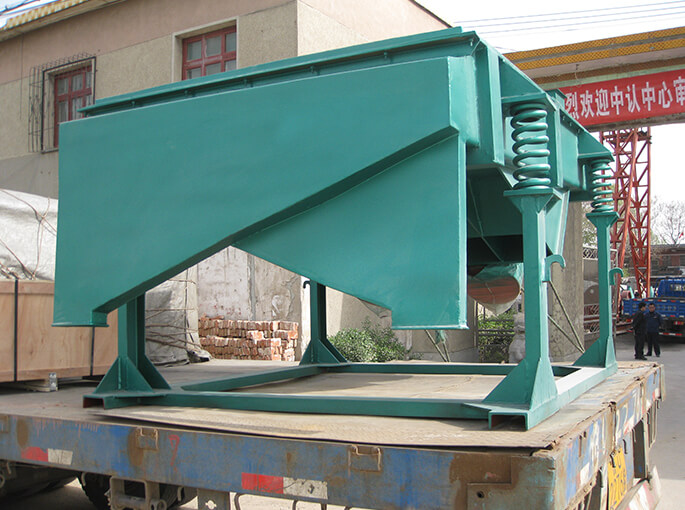

Working Site

Technical Parameters

ModelScreen Size(mm)Number of LayersScreen Area(㎡)Capacity  (m³/min)Mesh Size(mm)Dip(°) AngleDouble(mm) AmplitudePower     (kw)Dimension  (L×W×H)(mm)
ZTSF-520500×20001--610.05-50.074-20--73-4.5(0.4-0.75)×22140×808×848
ZTSF-525500×25001--61.250.06-80.074-20--73-4.5(0.4-0.75)×22750×808×938
ZTSF-530500×30001--61.50.08-150.074-20--73-4.5(0.4-0.75)×23219×808×1028
ZTSF-830800×30001--61.750.1-200.074-20--73-4.5(0.4-0.75)×23219×1250×1050
ZTSF-10201000×20001--620.12-200.074-20--73-4.5(0.4-0.75)×22219×1320×960
ZTSF-10251000×25001--62.50.12-200.074-20--73-4.5(0.4-1.1)×22269×1320×960
ZTSF-10301000×30001--630.15-200.074-20--73-4.5(0.4-1.5)×23219×1340×1120
ZTSF-10401000×40001--640.15-200.074-20--73-4.5(0.4-2.2)×24320×1350×1280
ZTSF-12301200×30001--63.60.1-250.074-20--73-4.5(0.4-2.2)×23230×1520×1260
ZTSF-12401200×40001--64.80.1-300.074-20--73-4.5(0.4-2.2)×24320×1520×1320
ZTSF-15301500×30001--64.50.5-300.074-20--73-4.5(0.4-2.2)×23250×1730×1340
ZTSF-15401500×40001--660.5-400.074-20--73-4.5(0.4-3.7)×24250×1730×1520
