Intermittent ball mill

  • weight: 3.3-21.5T
  • speed : 22-36(r/min)
  • Power:15-155kw

⌈ Product Features ⌋ :

Simple structure, easy operation, less auxiliary equipment, can obtain high fineness products at one time.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Working principle

The intermittent ball mill is a horizontal cylindrical rotating device, driven along the outer gear, two bins, grid type energy-saving ball mill, the material from the feeding device through the feeding hollow shaft spiral evenly into the first bin of the mill, the bin has a stepped lining plate or corrugated lining plate, inside the steel ball of different specifications, the cylinder rotation produces centrifugal force to bring the steel ball to a certain height and then fall, resulting in heavy impact and grinding effect on the material. After the material is coarse ground in the first bin, it enters the second bin through the single compartment plate, which is inlaid with a flat lining plate and has a steel ball, further grinding the material, and the powder is discharged through the discharge grate plate to complete the grinding operation.

Project Introduction


Intermittent ball mill is a kind of small non-continuous production ball mill. It is characterized by simple structure, convenient operation, less auxiliary equipment, high fineness products can be obtained at one time, and dry grinding can also be wet grinding.

The dry method is equipped with a special finished product collection hopper, and the wet method is equipped with a special pulp discharge valve, which is used in small production lines with special requirements for product fineness or special materials.

Product Advantage

Characteristics of Intermittent ball mill

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

1, rely on grinding time control;

2, the motor auto decompression start, reduce the starting current, its structure is divided into integral and independent;

3, this product has less investment, energy saving compared with similar products, novel structure, easy operation, safe use, stable and reliable performance, etc., suitable for ordinary and special materials mixing and grinding operations;

4, the user can choose the appropriate model and liner, medium type according to the specific gravity of the material, hardness, and output factors;

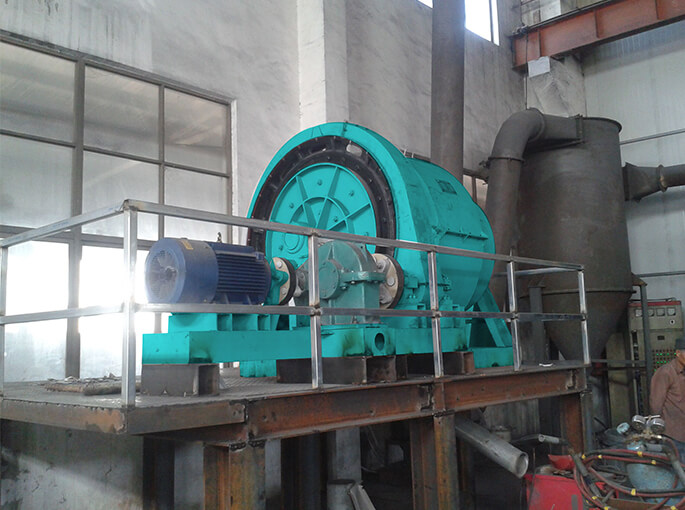

Working Site

Technical Parameters

Effective volume(m³)Maximum amount of material to be filled at one time(t)Cylinder speedMotor power
