Widely used in mineral processing, coal, building materials, chemical industry, refractory materials, metallurgy, cement, glass, ceramics, electric power and other industries of secondary or tertiary crushing.
Limestone, river pebbles, coal gangue, dolomite, granite, quartz stone, basalt, diabase and other materials.
Answer customer questions professionally
Combined with the actual configuration plan
Regular return visit and testing
Widely used in mineral processing, coal, building materials, chemical industry, refractory materials, metallurgy, cement, glass, ceramics, electric power and other industries of secondary or tertiary crushing.
The material falls vertically into the high-speed rotating impeller from the upper part of the machine. Under the action of high-speed centrifugal force, it has a high-speed impact with the other part of the material distributed around the crusher impeller in the form of an umbrella. After colliding with each other, the material will collide and grind in the eddy current formed by the material between the impeller and the casing for many times, and it will be directly discharged from the lower part to form many closed loops. The required size of the finished product is controlled by the screening equipment.

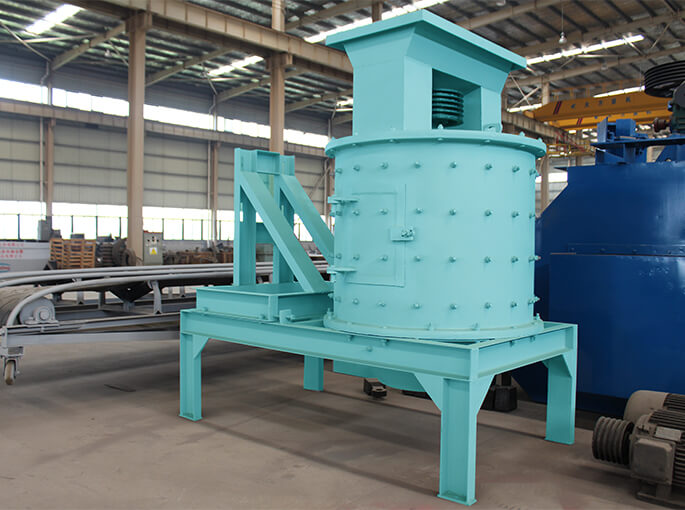

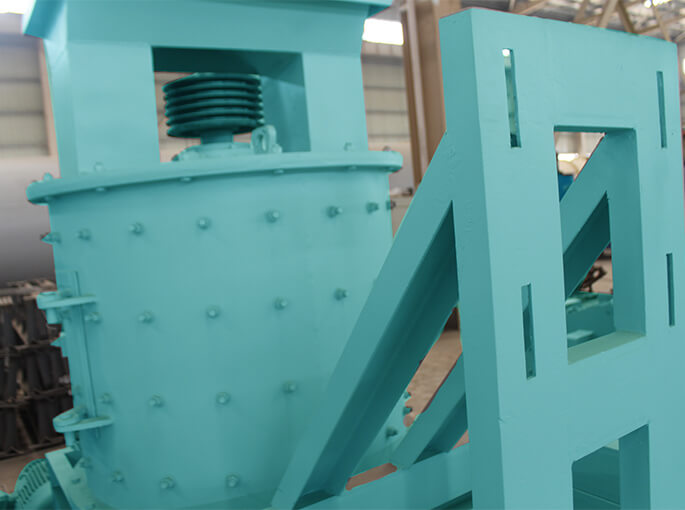

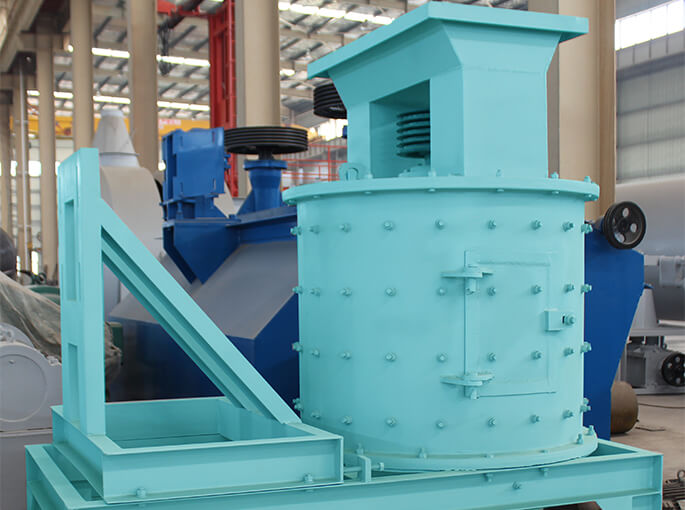

Compound crusher referred to as compound breaking, also known as vertical compound crusher, is a sieve bar, adjustable fine crushing equipment, often used in crushing production line and sand production line, widely used in cement plant raw material, clinker fine crushing operation.
High cshing efficiency, energy saving and environmental protection
The compound crusher has the function of fine crushing and coarse grinding, which is less affected by the water content of the material, the water content can reach about 8%, and the material with high temperature can also be broken (such as cement clinker), and the working noise is less than 75 decibels, and the dust pollution is less.
The product is cube, easy to operate
The product is a cube, saving stacking space and small iron pollution; Impeller self-lining wear is small, the rear cavity is set with a screw or hydraulic opening mechanism, without the main equipment, you can easily replace the wearing parts.
Internal safety device, safe and reliable
The discharge particle size can be adjusted arbitrarily, no screen bar setting, crushing materials containing large amounts of mud will not be blocked; With elastic adjusting mechanism, the inbreakable material can be automatically discharged without causing damage to the equipment.
Equipment composition
The compound crusher is mainly composed of a transmission device, a main shaft, a barrel, a liner, a hammer head, a cover and a base.
| Model | Spindle Speed (r/min) | Feed size (mm) | Capacity (t/h) | Power (kw) | Discharge Port Range(mm) | Dimension (L×W×H)(mm) | Weight （t) |
| PFL 600 | 934 | 30 | 5--10 | 7.5 | ＜3-5 60-90% | 1300×730×1650 | 1.6 |
| PFL 800 | 934 | 50 | 8--15 | 22 | ＜3-5 60-90% | 2000×900×1800 | 2.3 |
| PFL 1000 | 769 | 50 | 15--30 | 45 | ＜3-5 60-90% | 2700×1150×1850 | 4.5 |
| PFL 1250 | 530 | 50 | 30--60 | 90 | ＜3-5 60-90% | 2900×1350×1900 | 9.73 |
| PFL 1500 | 495 | 50 | 50-100 | 110 | ＜3-5 60-90% | 3100×1900×2300 | 18.1 |
| PFL 1750 | 424 | 50 | 70-150 | 132 | ＜3-5 60-90% | 3350×2100×2800 | 26.61 |
| PFL 2000 | 370 | 50 | 100-160 | 185 | ＜3-5 60-90% | 4100×2660×2620 | 32 |
