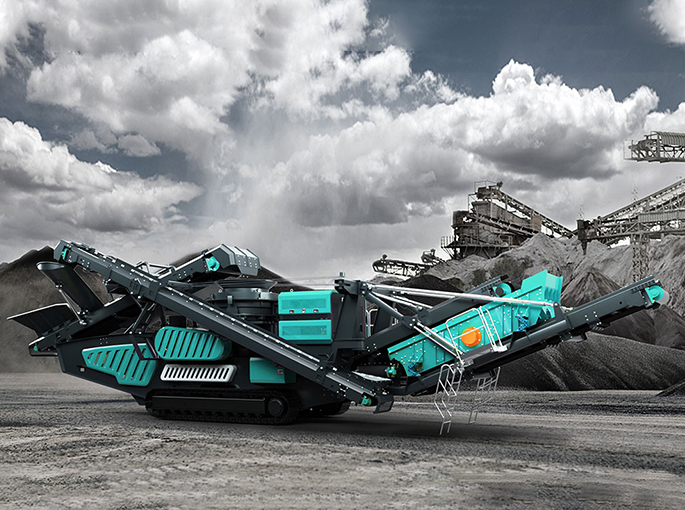

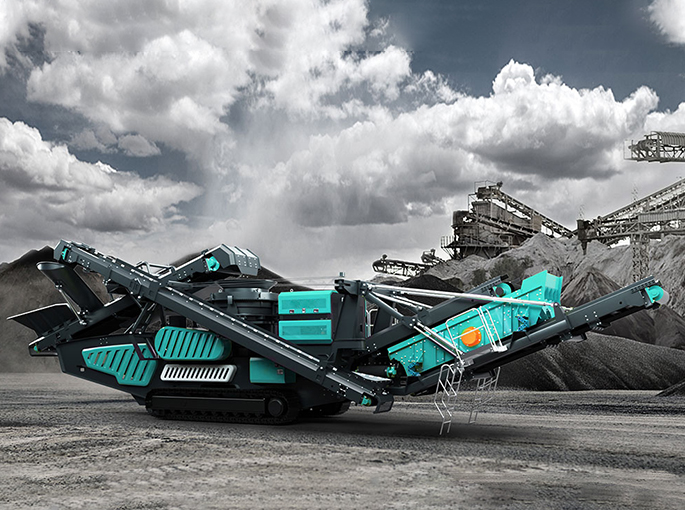

Mobile impact crusher

  • Crusher weight: 18T
  • Crusher power : 185kw
  • Capacity: 120-300 T/H


AK-120IS Mobile impact crushing plant has impact material crushing technology. It is characterized by large output, high crushing efficiency, low energy consumption, low wear and tear, high reliability, and excellent granularity of finished products.


Afrika Machinery offers a wide range of tracked mobile jaw crushing plants, impact crushing plants, cone crushing plants and screening plants for the processing of mineral raw materials and the recycling of construction materials.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing


1. The high-efficiency impact crushing host has adjustable speed and optional two- or three-chamber crushing devices. While ensuring the output, it also meets the requirements of the discharge particle shape.
2. The main engine parts are made of high-strength chromium plates and wear-resistant lining plates, which reduces the frequency of replacement of wearing parts and also extends the service life of the main engine.
3. The highly integrated powertrain, feeder and screening system and integrated crawler design not only meet the movement requirements of various complex terrains, but also ensure the stable output of the production line.
4. Scope of application: The crushing compressive strength generally does not exceed 350Mp ore and limestone, coal gangue, slag, ballast, coking coal, etc. The equipment is not suitable for use in ores with surface moisture greater than 9~12% or with viscosity. Characteristic material crushing.

Product introduction


The mobile Impact crusher is widely used in mining, water conservancy, transportation, railroad, cement, building materials, metallurgy, chemical industry, electric power, construction and other industries for coarse and medium crushing of hard materials, the compressive strength of the material does not exceed 150Mpa. it has the advantages of large output, high crushing efficiency, low energy consumption, low wear and tear, high reliability, and the product has become a good cubic granularity.

Product Advantage

Characteristics of Jaw crusher

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

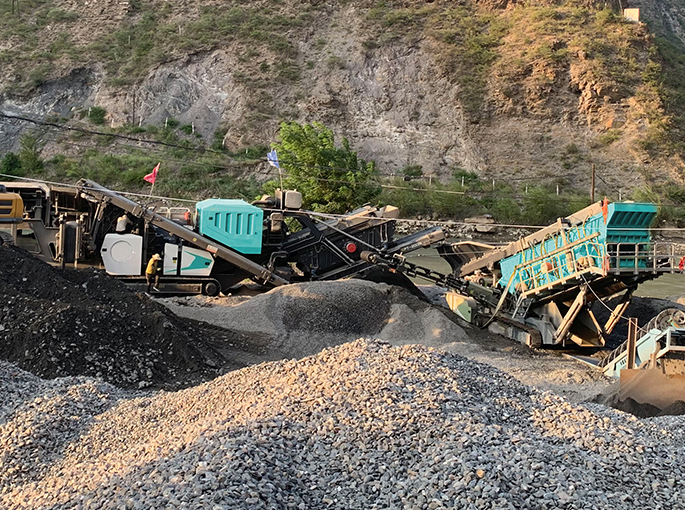

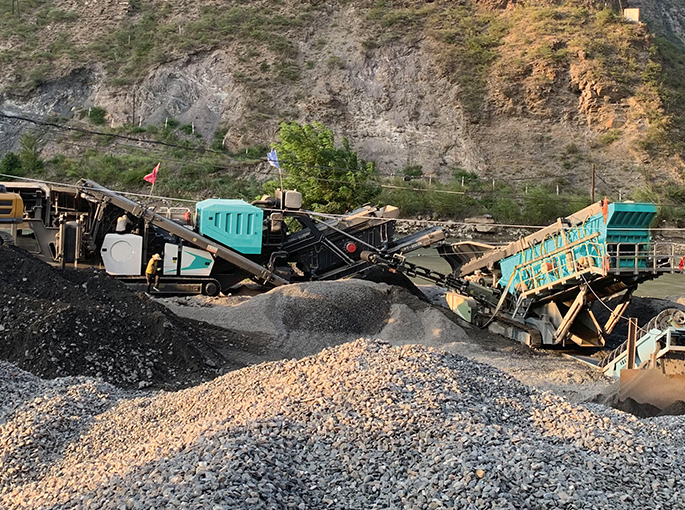

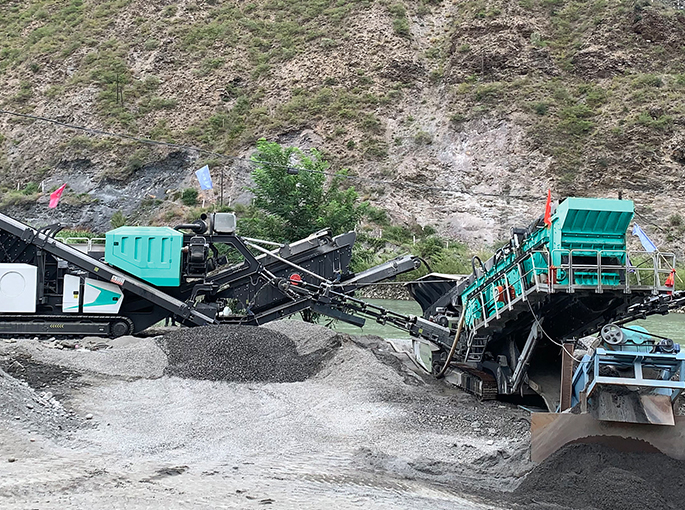

Working Site

Technical Parameters

Offering customized solutions and price discounts

PowerVehicle drive formDiesel engine/mains electricityDiesel engine/mains electricityDiesel engine/mains electricity
Host Total powerCummins264kwCummins336kwCummins400kw
Total Weight38t46t60t
Machine processing capacity150-200t/h200-350t/h250-350t/h
Crushing host modelCIA1110CIA1213CIA1315
Driving power160kw200kw250kw
Drive formMotor/HydraulicMotor/HydraulicMotor/Hydraulic
Inlet size1020x8201320x8801540x930
Rotor size1100x10001200x13001300x1500
maximum feed500550600
screening systemNumber of screen layersSingle layer/multi-layerSingle layer/multi-layerSingle layer/multi-layer
Screen specifications1500*30001500x36001800x4200
Screen drive methodHydraulic/motorHydraulic/motorHydraulic
