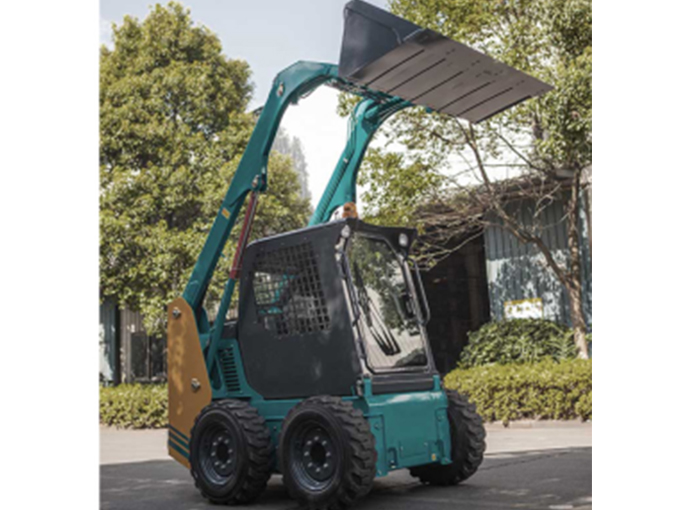

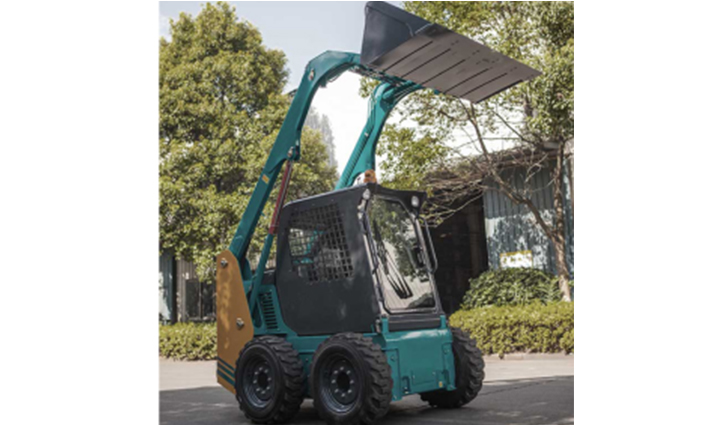

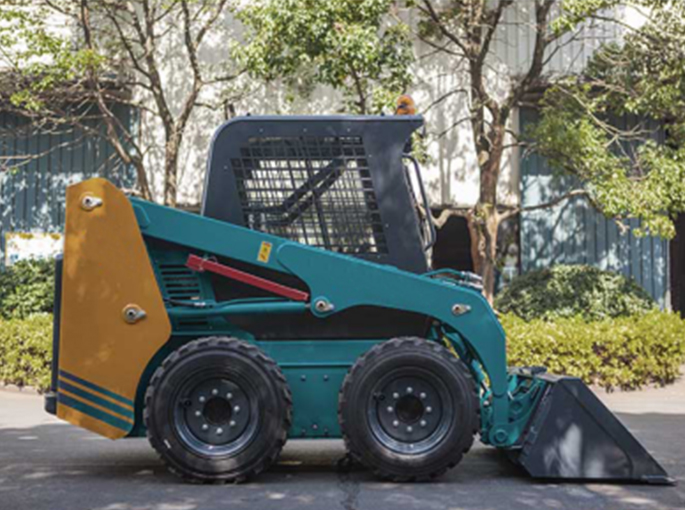

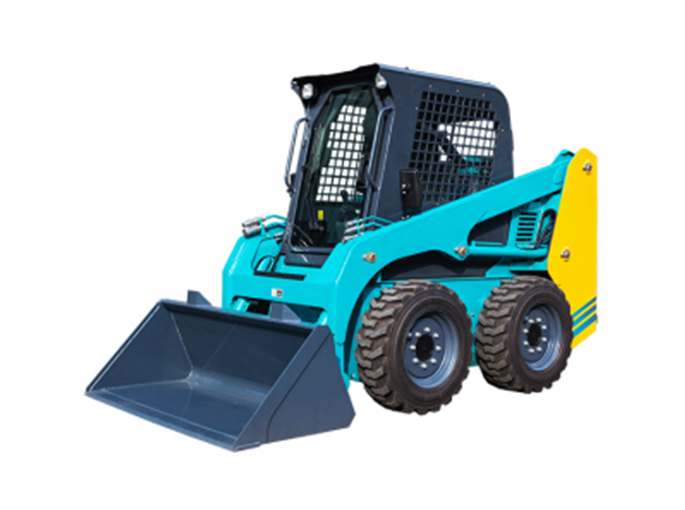

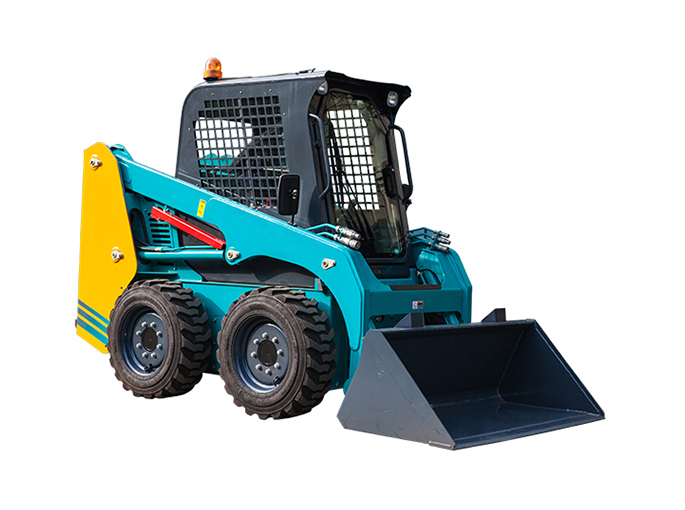

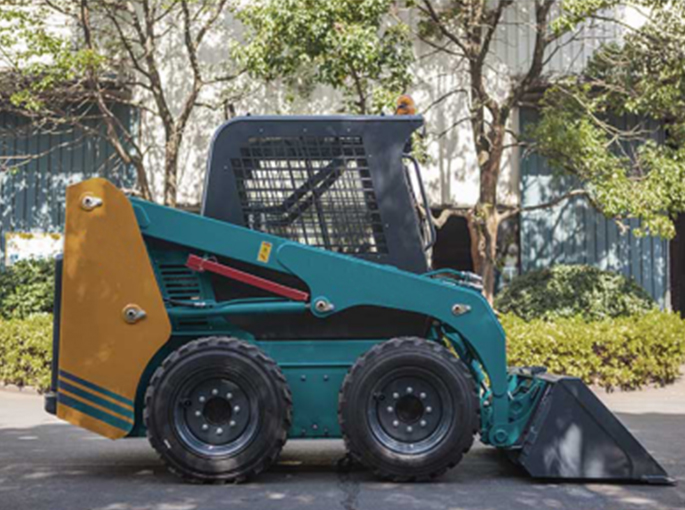

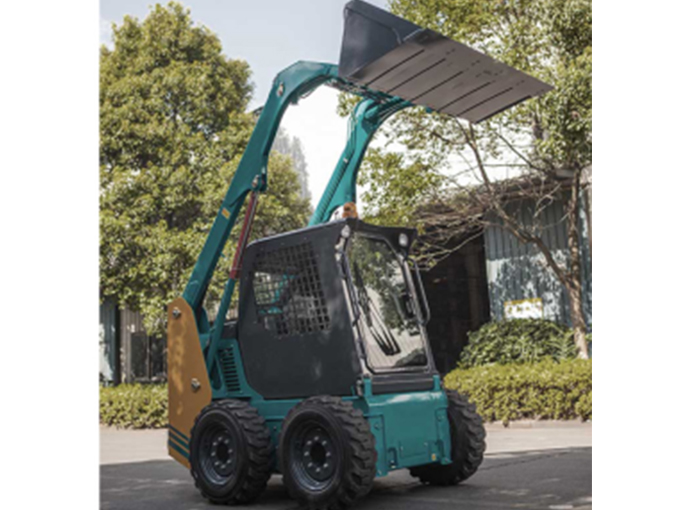

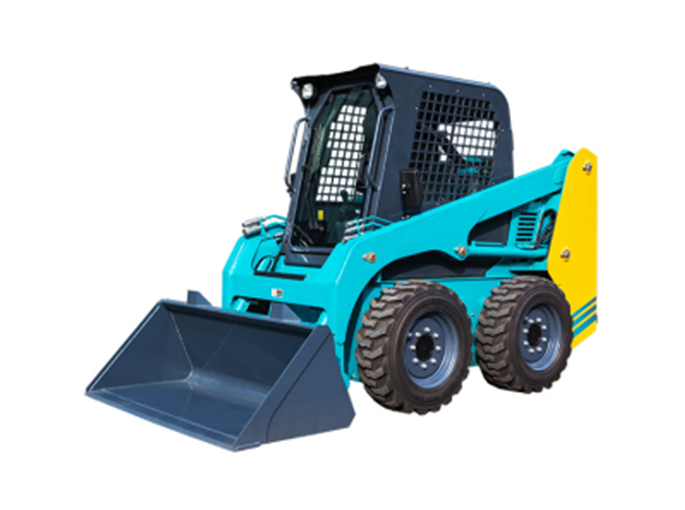

HFL 2820 wheeled skid steer loader is suitable for urban infrastructure, construction sites, workshops, warehouses, docks, ship decks, and even cabins where the site is narrow and the work content changes frequently.
Answer customer questions professionally
Combined with the actual configuration plan
Regular return visit and testing
1. The overall structure of innovation
The hydraulic oil tank, fuel tank and the chassis are integrated to save space and make the machine more robust.
2. Strong power system
The internationally famous engine is used to ensure that the machine is capable of various tasks.
3. Vertical lifting mechanism
The original lifting mechanism enables the machine to have a longer unloading distance.
The driver's cab is spacious and has a good view, which complies with ROPS/FOPS. All the instruments are arranged in the front where it is easy to observe, all the button switches are within easy reach, and the safety armrest can prevent people from accidentally leaving the seat. The optimized structural design makes the machine have a larger lifting height among similar models. Fully considering the convenience of maintenance, daily maintenance can be completed by opening the rear cover. The driver's cab can be turned forward at a large angle.
| Model | HFL2820 | ||
| Performance | Loading | kg | 750 |
| Overturning load | kg | 1500 | |
| Bucket Breakout Force | kg | 2000 | |
| Boom breakout force | kg | 1900 | |
| Maximum speed | Km/h | 13 | |
| Engine | brand | KUBOTA | |
| model | V2403-DI(2403M-T) | ||
| type | 4 cylinders, water cooling | ||
| Diesel engines | |||
| Emission Standards | EPA Tiger4 | ||
| /EU StageⅢ A | |||
| rated power | kw/rpm | 36/2600 | |
| （41.7/2600） | |||
| Maximum torque | N.m/rpm | 156.3/1600 | |
| （163.6/1800） | |||
| Electrical System | starter motor | V/kw | 12/2.0 |
| dynamo | V/A | 12/60 | |
| storage battery | Ah | 120 | |
| The amount of fuel | Hydraulic tank | L | 35 |
| Fuel tank | L | 75 | |
| Hydraulic system | standard flow | L/min | 67 |
| Large Flow | L/min | 98 | |
| standard working pressure | bar | 210 | |
| Large flow working pressure | bar | 165 |
