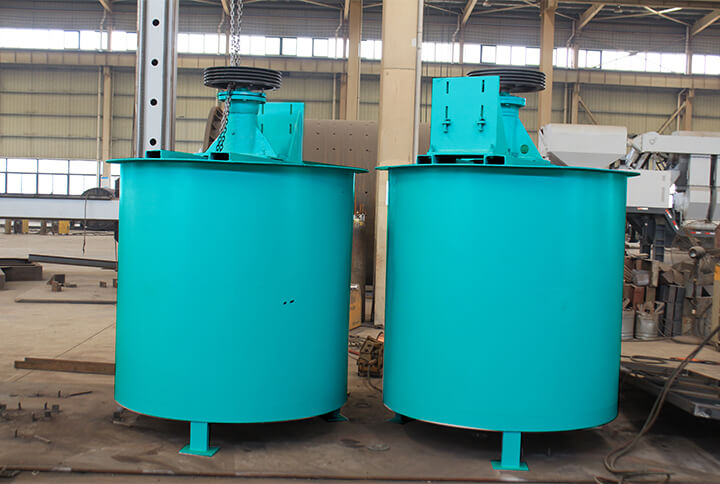

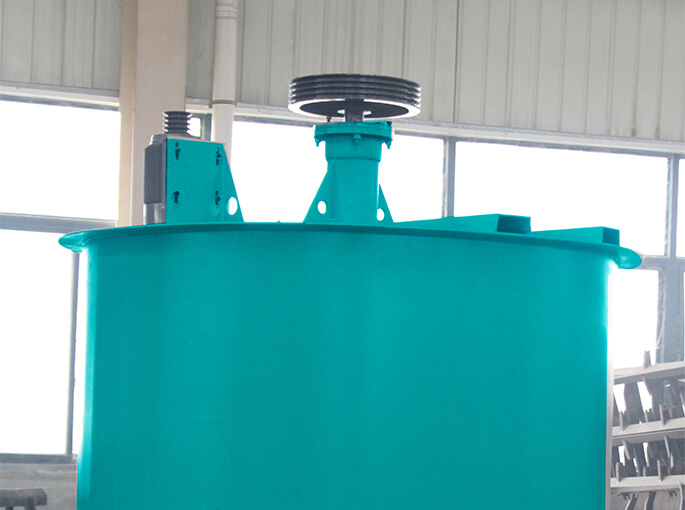

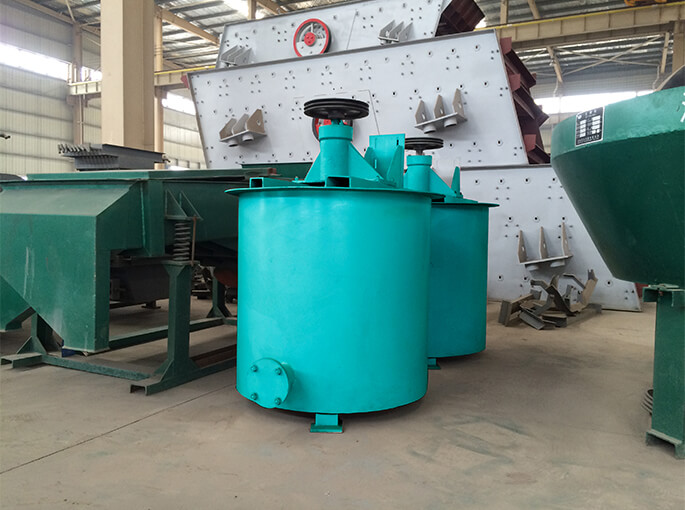

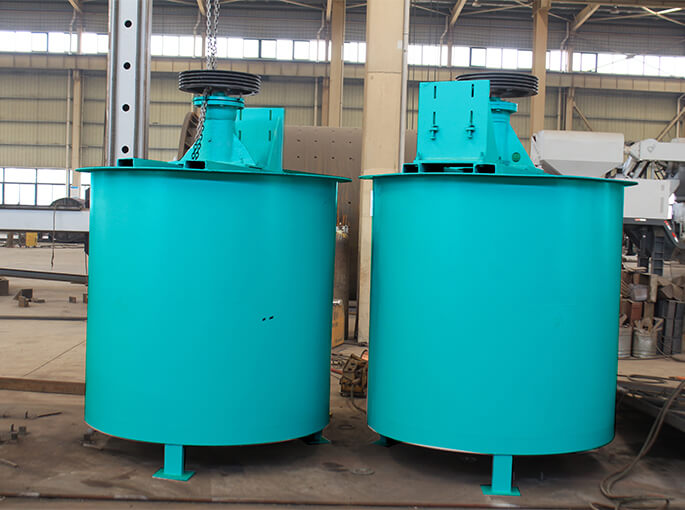

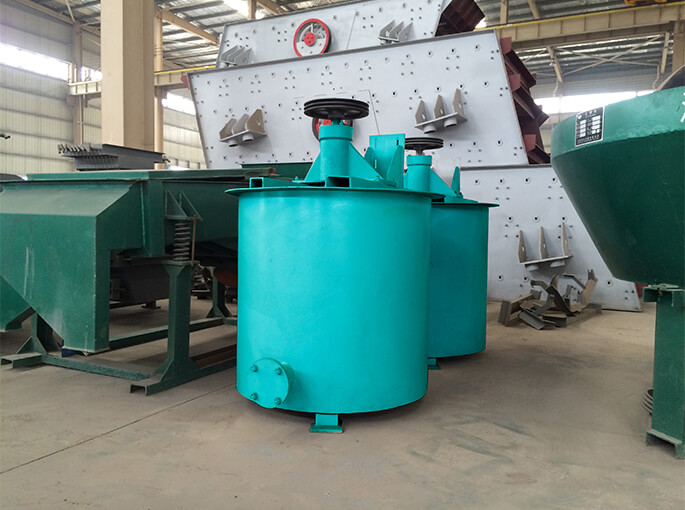

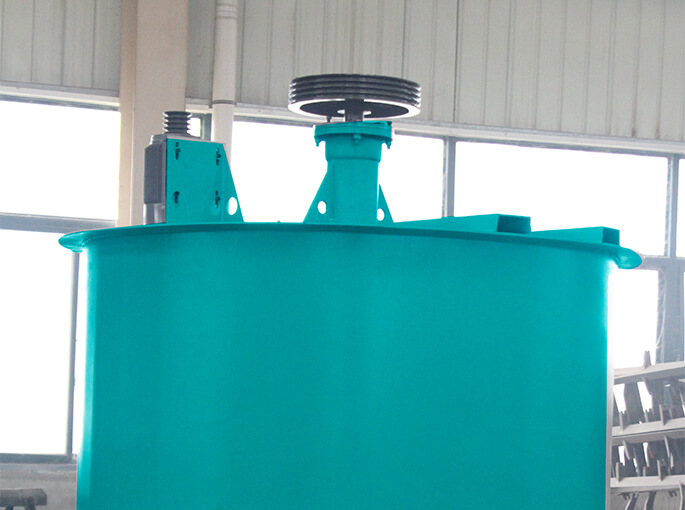

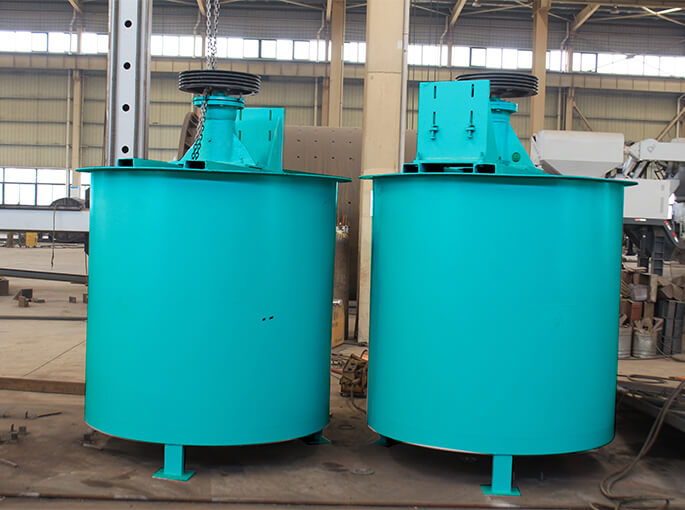

Mineral agitation barrel

  • Height: 1000-3000mm
  • Weight :685-4296kg
  • Power:1.5-22kw

⌈ Introduction⌋ :

Mineral agitation barrel is mainly used to mix slurry before flotation in the beneficiation process. It can mix drug and slurry completely. It is suitable to mix slurry with density smaller than 30 % (weight ratio) and size smaller than 1mm. This machine can increase reaction time and strengthen reaction quality of the drug.

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

working principle

When the machine work , by the rotation of the impeller, the pulp and pharmaceutical take circular motion , so that get mixed evenly in the whole tank ,and the mixed suspension liquid discharges from the overflow part.

Project Introduction

Introduction

Mineral agitation barrel is the necessary equipment which mixes the drug and pulp to add the reaction time of chemical agent and strengthen drug reaction quality. It is suitable for ore dressing and all kinds of mixing operations in chemical industry.

Mineral agitation barrel is suitable for all kinds of metal ore, which is mainly used for mixing before flotation. It can make the pharmacy and slurry fully mixed, which can also be used for stirring other non-metallic minerals.

Mixer is suitable for the material with not more than 30% concentration (by weight) and fixed components size less than 1mm. Due to the properties of mixer, it also can be called stirring tank, mineral mixing barrel and agitation vat.

Product Advantage

Characteristics of Mineral agitation barrel

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

1. Reasonable structure; good sealing; low rate of left dust.

2. The pulp stirs well; the blender blade is fan-shaped, which enlarges its contact area with the agent.

3. Spray head is designed with multi-rows and the water quantity is adjustable.

4. Advanced design; reliable final product quality;it stirs well and discharges materials promptly.

Working Site

Technical Parameters

ModelCylinder Size  (mm)Impeller Speed(r/min)Impeller diameter(mm)Capacity  (m³)Power (kw)Feed size(mm)Weight (kg)
GJB-500φ500×5006901500.0780.752--0110
GJB-700φ700×7005302400.261.52--0228
GJB-1000φ1000×10005302400.582.22--0548
GJB-1250φ1250×12503502401.1532--01108
GJB-1500φ1500×15003204202.25.52--02207
GJB-2000φ2000×20002405604.47.52--03110
GJB-2500φ2500×25002725609.2153--03939
GJB-3000φ3000×300021170019.118.53--04613
GJB-4000φ4000×4000153100045303--09560
