It is used in metallurgy,chemical industry,building materials,water conservancy,mining,construction industry,etc.
Answer customer questions professionally
Combined with the actual configuration plan
Regular return visit and testing

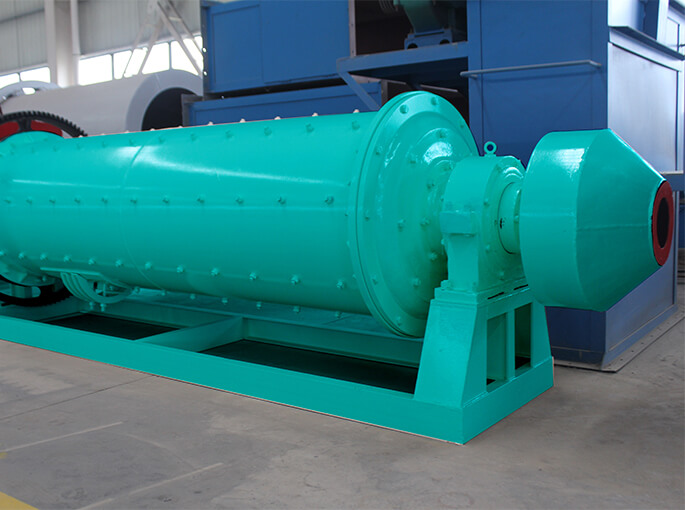

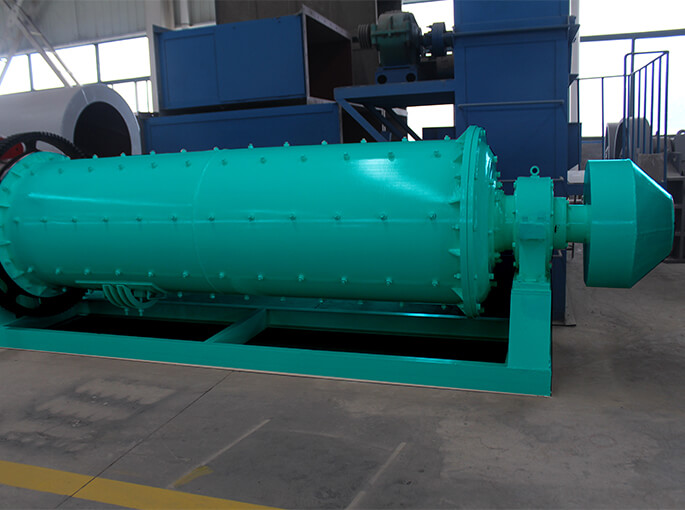

1.Grid ball mill adopts antifriction bearing instead of sliding bearings, which reduces friction and save consumption.

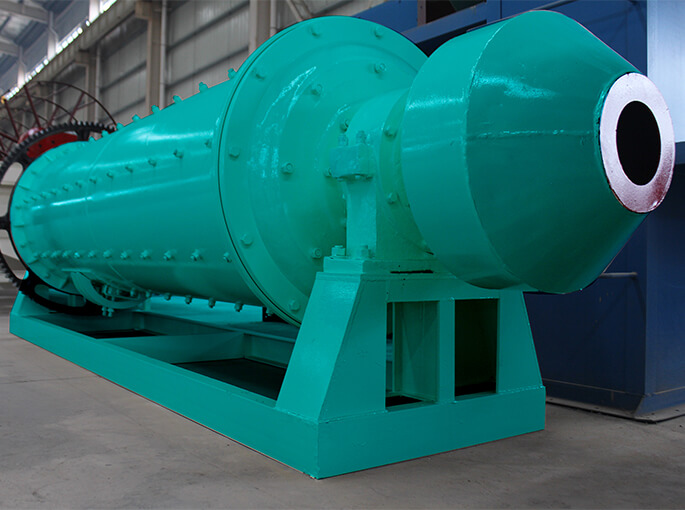

2.Discharging part adopts cone design, which can increase the volume, compels classification of steel ball, and makes the diameter of steel ball smaller, so that it can improve the precision of grinding.
3.It adopts groove circular plate, which increases connecting area, strengthens the grinding function, and reduces the power.
4.It adopts the whole frame, convenient for civil construction and device installation.
Bearing adopts oil lubrication system, thus help bearing internal dirt cleaning and reduce the bearing attrition during normal operation.
Bailing ball mill reduces replacement frequency of easily damaged parts at the most extent.
Lining plates,steel balls are made of high chrome steel,which is very wear-resisting and durable, brings a lot of advantages for ball mill’s maintenance and working.
| Model | Type | Capacity | Speed | Weight of ball | Power | Main | Weight |
| (t/h) | (r/min) | (t) | (kw) | speed reducer | (t) | ||
| MQG1245 | 1200×4500 | 1.4-2 | 35 | 5.2 | 45 | ZD30 | 12 |
| MQG1557 | 1500×5700 | 3.5-4.5 | 29 | 12.25 | 115 | ZD40 | 23 |
| MQG1864 | 1830×6400 | 5.5-6.4 | 24.23 | 18.5 | 155 | ZD60 | 34.6 |
| MQG1870 | 1830×7000 | 6-7 | 23.91 | 21 | 185 | ZD60 | 36.5 |
| MQG2265 | 2200×6500 | 14-15 | 21.4 | 31 | 380 | ZD70 | 50 |
| MQG2275 | 2200×7500 | 16-18 | 19 | 32.5 | 380 | ZD70 | 63 |
| MQG2470 | 2400×7000 | 26-30 | 17 | 38 | 475 | ZD70 | 70.5 |
| MQG3090 | 3000×9000 | 42-50 | 15 | 65 | 1000 | ZD80 | 156.5 |
