Sand and stone yard, concrete mixing station, dry mortar, power plant desulfurization, quartz sand and so on.
Iron ore, copper ore, limestone, quartz stone, granite, river pebbles, basalt, diabase and other hard or medium hard ores and rocks.
Answer customer questions professionally
Combined with the actual configuration plan
Regular return visit and testing
The dynamic cone of the high-energy hydraulic cone is driven by the eccentric set to make a rotating pendulum movement, which drives the material between the broken wall and the rolled mortar wall to squeeze and grind. According to the lamination theory, the material is subjected to forces in multiple directions, broken and polished according to its own texture, and finally forms stable stone particles, which fall from the rotating pendulum gap of the broken wall in line with the discharge requirements. The remaining materials continue to be broken until the final requirements are met.

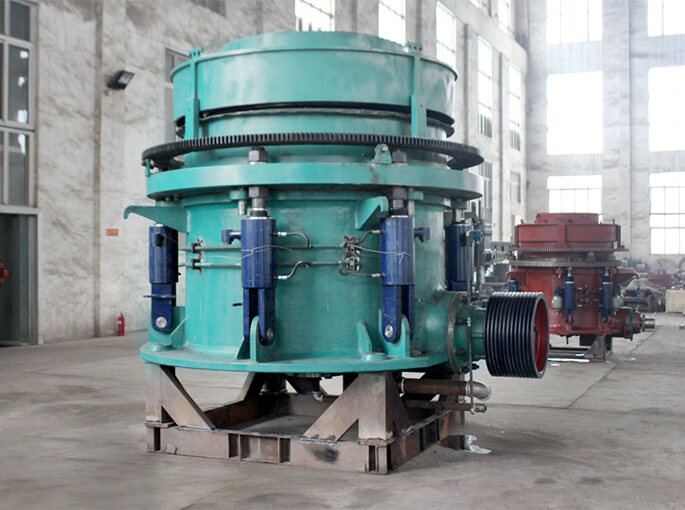

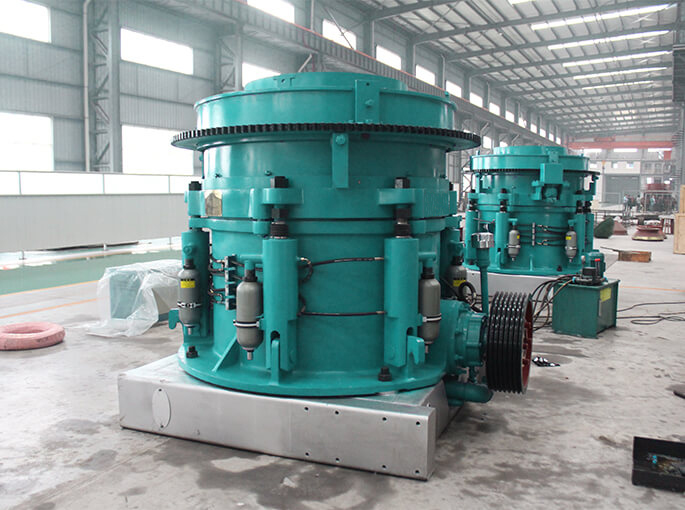

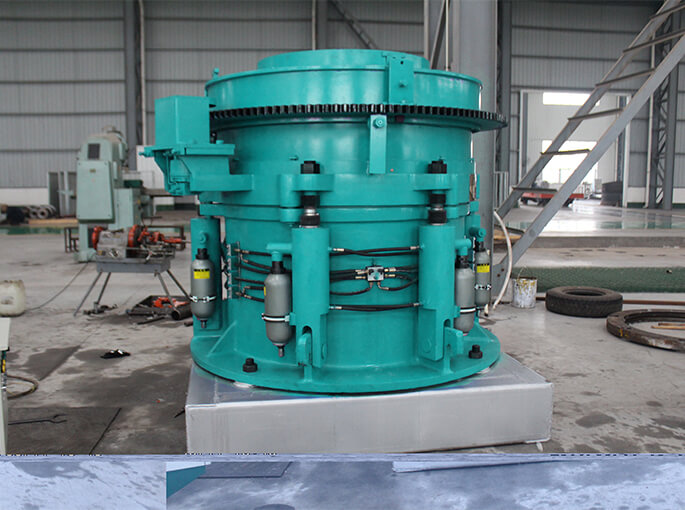

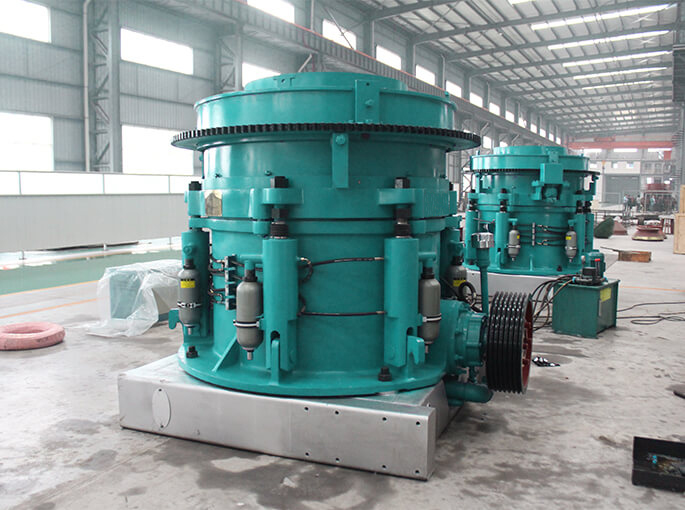

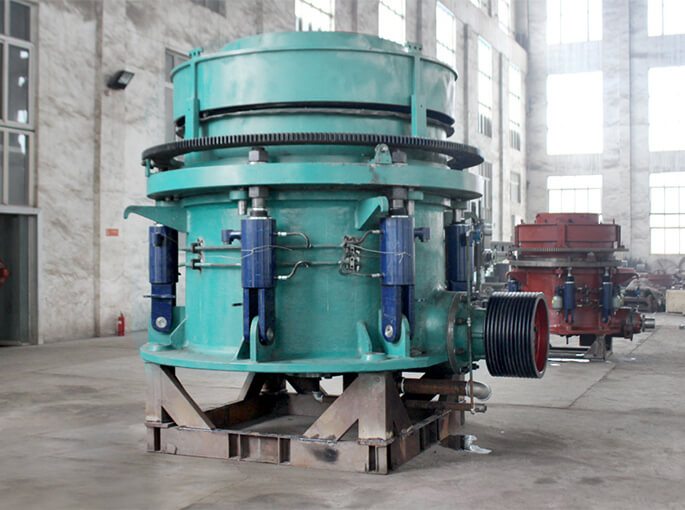

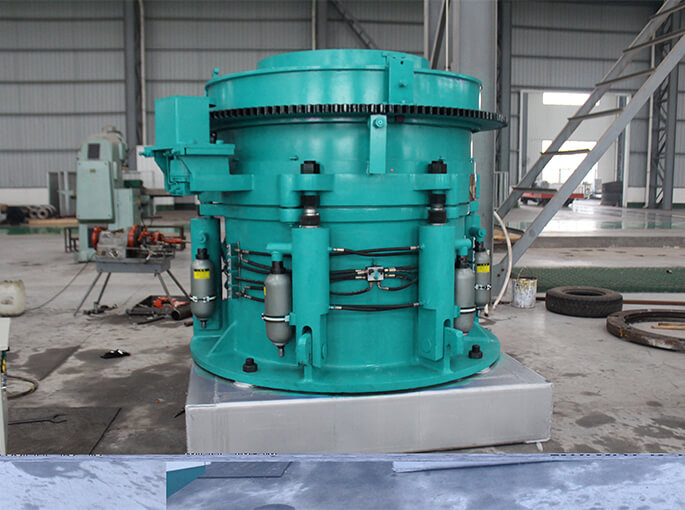

High energy hydraulic cone crusher is the use of new technology, new technology, new concept developed into high-end equipment, mainly used in metal mines, construction sand processing in the second stage of crushing and three stages of crushing links, because of its crushing capacity, large output, more is used for the crushing of hard materials.
Laminated crushing, the finished grain shape is excellent
The special crushing chamber designed by the principle of intergranular lamination and its matching speed replace the traditional single particle crushing principle to achieve selective crushing of materials, significantly improve the proportion of fine materials and cube content of products, and greatly reduce the probability of needle sheet materials.
High quality wear-resistant parts for longer life
All parts of the crusher have wear protection, the maintenance cost is reduced to a minimum, the general service life can be increased by more than 30%, to ensure the efficient operation of the machine, reduce operating costs.
Hydraulic protection, automatic clearance, safer production
The high energy hydraulic cone is equipped with a fully automatic hydraulic safety system, and the buffer performance is very good. Therefore, when the crusher encounters non-crushing materials such as iron blocks, it can react quickly to realize the function of automatically removing debris and ensure the safety of the equipment.
Equipment composition
High energy hydraulic cone crusher is mainly composed of shell, motor, fixed cone, moving cone, hydraulic device, lubrication system, hydraulic coupling, regulation system, control system and protection device.
| Model | Cavity | Capacity (t/h) | Vertebral Diameter | Power (kw) | Discharge Port Range(mm) | Feeding Size(mm) | Weight （t) |
| HPY200 | C1 | 160-250 | 900 | 4P-160 | 22--38 | 178 | 10.1 |
| C2 | 145-250 | 18--38 | 132 | ||||
| C3 | 120-250 | 14--38 | 110 | ||||
| F1 | 108-210 | 12--25 | 100 | ||||
| F2 | 81-210 | 10--25 | 76 | ||||
| F3 | 72-210 | 8--25 | 60 | ||||
| HPY300 | C1 | 230-445 | 1100 | 4P-220 | 26--45 | 200 | 17.8 |
| C2 | 200-445 | 26--45 | 180 | ||||
| C3 | 180--445 | 16--45 | 115 | ||||
| F1 | 160--220 | 14--25 | 105 | ||||
| F2 | 140--220 | 12--25 | 82 | ||||
| F3 | 120-220 | 8--25 | 60 | ||||
| HPY400 | C1 | 270-630 | 1400 | 4P-315 | 26--51 | 280 | 25 |
| C2 | 246-630 | 22--51 | 170 | ||||
| C3 | 210-630 | 16--51 | 130 | ||||
| F1 | 162-370 | 12--25 | 115 | ||||
| F2 | 126-370 | 10--25 | 90 | ||||
| F3 | 104-370 | 8--25 | 68 | ||||
| HPY500 | C1 | 365-790 | 1500 | 4P-400 | 32--51 | 285 | 34.1 |
| C2 | 328-790 | 25--51 | 190 | ||||
| C3 | 280-790 | 19--51 | 152 | ||||
| F1 | 202-450 | 13--25 | 130 | ||||
| F2 | 158-450 | 10--25 | 105 | ||||
| F3 | 122-450 | 8--25 | 75 | ||||
| HPY800 | C1 | 616-1100 | 2000 | 4P-630 | 32--51 | 326 | 69.2 |
| C2 | 522-1100 | 25--51 | 298 | ||||
| C3 | 380-1100 | 16--51 | 238 | ||||
| F1 | 328-730 | 13--25 | 136 | ||||
| F2 | 270-730 | 10--25 | 102 | ||||
| F3 | 166-730 | 8--25 | 77 |
