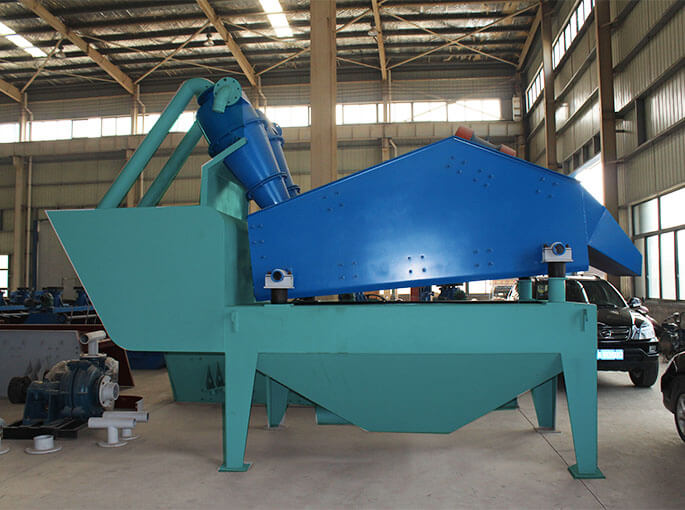

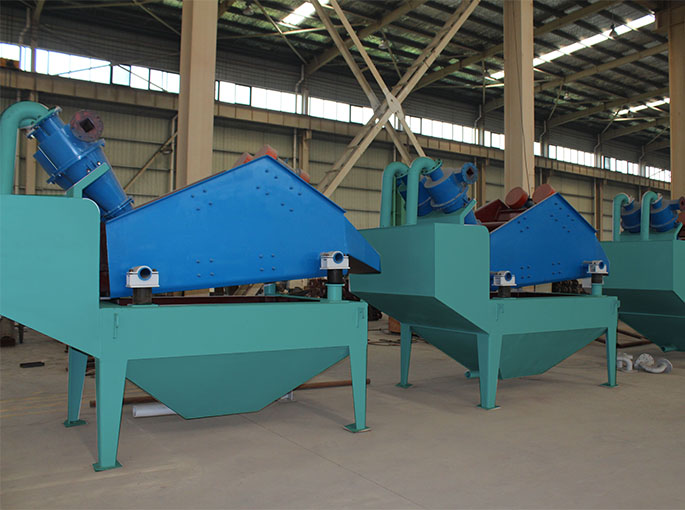

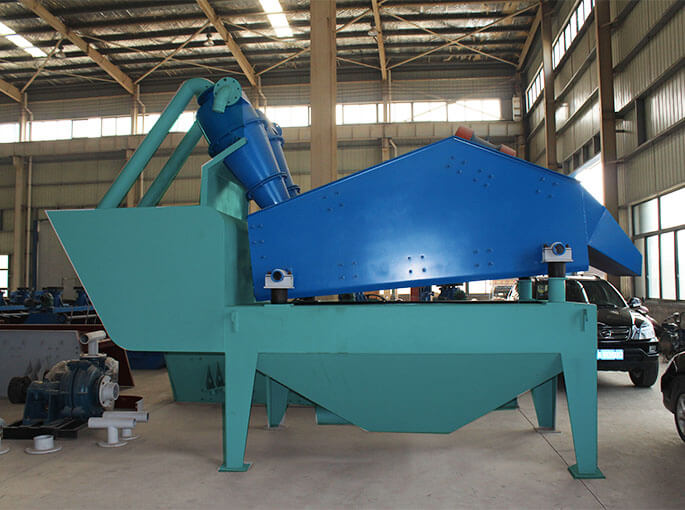

Sand washing and recycling machine

  • Feeding Size ≤ 10mm
  • Production Capacity 20-300t/h
  • Power:29.4-149kw

⌈ Application scope ⌋ :

Used for fine sand and mud purification, sand and stone aggregate processing systems in hydropower stations, glass raw material processing systems, manual sand production lines, coarse coal and mud recovery, and environmental protection engineering (mud purification, etc.).

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Composition structure

Equipment such as vibrating screen, water washing wheel, cyclone assembly, power system, slurry pump, sewage tank, etc.

Suitable materials include natural sand, machine made sand, coarse coal slurry, kaolin, mud, concrete mixing plant and other fine materials.

Note: The specific production capacity is based on the customer’s on-site configuration and production capacity.

Project Introduction

Introduction

The integrated machine for sand washing, dehydration, and recycling is designed by Hanfa Group to meet the requirements of water washing equipment for large mining quarries or large mechanical sand factories. It can meet the vast variety of raw materials in the current sand washing industry (such as stone powder, yellow sand, mountain sand, etc.). This equipment is extremely simple to install and occupies a small area. It includes three functions: water washing, dehydration, and fine sand recycling, with a high degree of intensification, effectively meeting the equipment requirements of the current sand washing industry.

Note:

The specific production capacity is based on the customer's on-site configuration and production capacity.

Product Advantage

Characteristics of Sand washing and recycling machine

  • High ratio of crushing
  • Even final size, -Simple structure
  • Reliable working condition
  • Easy maintenance
  • Low operating cost

High processing power and efficiency

The entire machine has a large ability to handle sewage slurry, with a purification and recovery efficiency of over 95%, and can effectively recover sand particles of over 0.2 mm.

Advanced structure with low failure rate

The wear-resistant centrifugal slurry pump has advanced structure, high universality, and reliable operation; Easy to operate, easy to install, use, and maintain, and low failure rate.

Durable and wear-resistant components

The material is wear-resistant, corrosion-resistant, and lightweight, making it easy to operate and adjust, economical and durable. It is suitable for long-term maintenance free use under harsh working conditions.

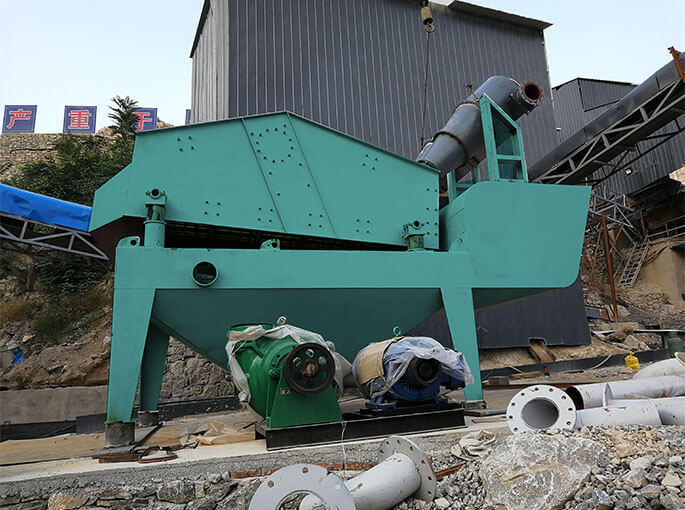

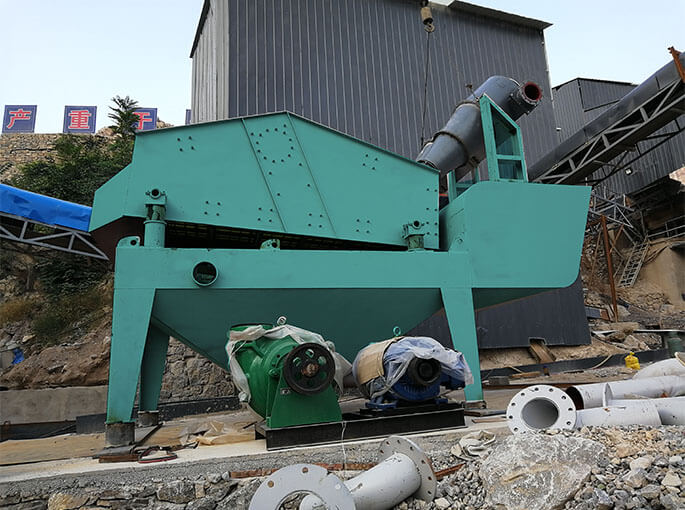

Working Site

Technical Parameters

ModelFeeding size(mm)capacity(t/h)Impeller specifications(mm)Specification of separator(mm)Sieve plate specifications(mm)power(kw)weight(kg)Dimensions(mm)
BL1808-55-1224≤1020-401800*800250*21200*240029.448005800*5000*1950
BL2612-65-1530≤1030-602600*1200300*21500*30004053905800*5560*2750
BL3016-65-1842≤1040-803000*1600300*21800*420044.4105007950*6200*3700
BL3016-75-1842J≤1060-1003000*1600350*21800*420052.4112007950*6200*3700
BL3620-120-2442J≤10100-1503600*2000300*42400*420089.5151508500*6800*3700
BL3624-140-3048J≤10120-2003600*2400350*43000*4800115169907950*7400*4100
BL3624-140-3060J≤10120-2003600*2400350*43000*6000122186207950*7400*4100
BL4230-180-3660J≤10160-2504200*3000300*63600*6000149246008580*8020*4860
BL-18-7502*750400-60075kw10''18x3.756.752x7.519680
