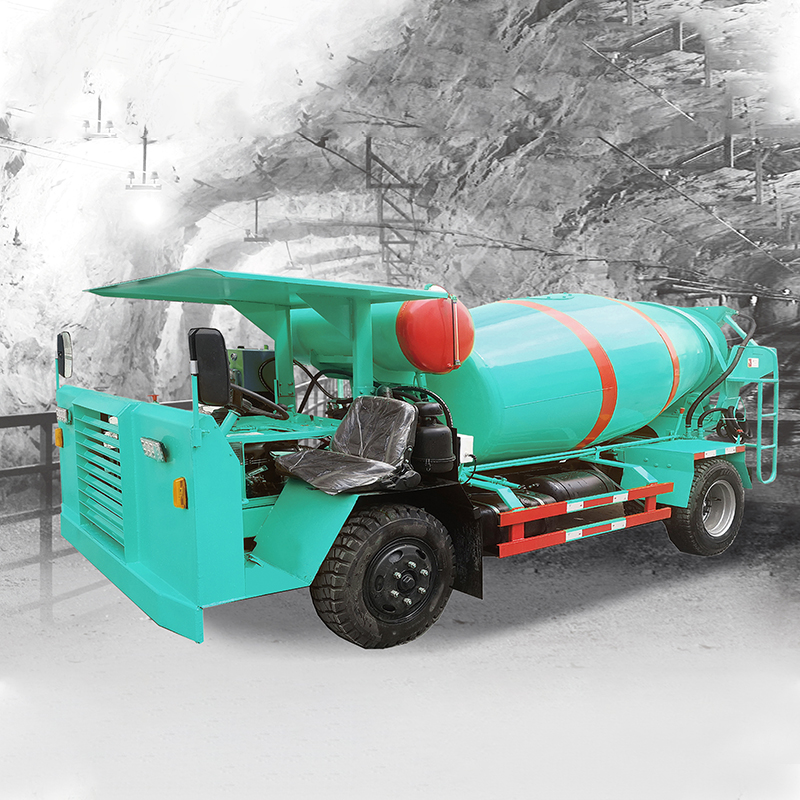

underground concrete mixer truck

Tank Capacity：4.0 m³

Type of reducer：Constant hydraulic pump driving

Brake mode：Air-cut brake

Underground concrete mixer trucks are off-road specialized transport equipment designed for special working conditions such as metal mines, tunnel projects, and underground coal mines. They are primarily used to quickly and efficiently transport mixed concrete to underground wet spraying trolleys or pouring faces to complement wet spraying processes, improve the working environment, and reduce labor intensity.

Request for Quotation CHAT ONLINE
Share

60s rapid response

Answer customer questions professionally

Free scheme design

Combined with the actual configuration plan

Perfect Service

Regular return visit and testing

Get the Mine Industry Solutions for Free
Specification UCM-4 UCM-3
Engine type YUNNEI 4102QBZ YUNNEI 490QB
Engine Power 81kW 48kW
Transmission Model EQ145 EQ145
Tank Capacity 4.0  m³ 3.0  m³
Rear Axle ratio 6.167 6.167
Drive mode 4×2 or 4×4 4×2 or 4×4
Rear Axle type 1080 1069
Front tire type 700-16(2 Pcs) 700-16(2 Pcs)
Rear tire type 750-16(4 Pcs) 700-16(4 Pcs)
Truck size
(L×W×H)(mm)		 5850×2050×2700 5750×1850×2350
Tank plate thickness 6mm
(Manganese Steel)		 6mm
(Manganese Steel)
Specification UCM-4 UCM-3
Type of reducer Constant hydraulic pump driving Constant hydraulic pump driving
Tank power extractor mode Gearbox take-off Gearbox take-off
Steering Hydraulic  Steering Hydraulic  Steering
Brake mode Air-cut brake Air-cut brake
Grade ability 12° 12°
Wheel Base 3200mm 3050mm
Exhaust cleaning Water filtration Water filtration
Front suspension plate 65×12mm(11片Pcs) 65×12mm(11片Pcs)
Rear suspension plate 75×13mm(14片Pcs) 75×12mm(17片Pcs)
The chassis material 160*80mm
(Rectagular Steel Tube)		 160*80mm
(Rectagular Steel Tube)
